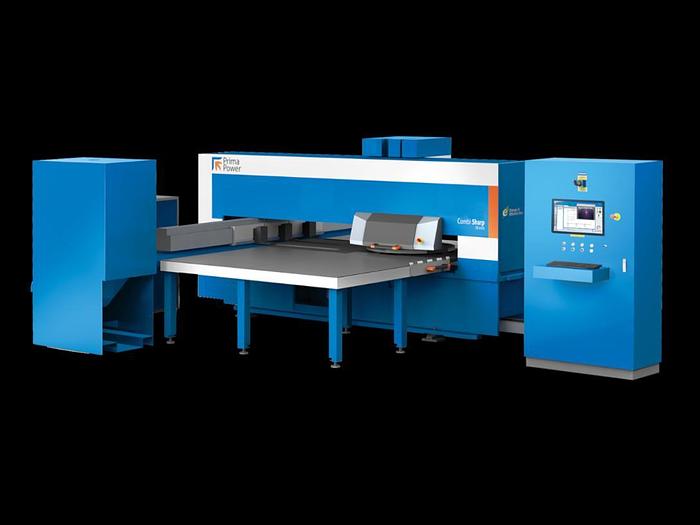

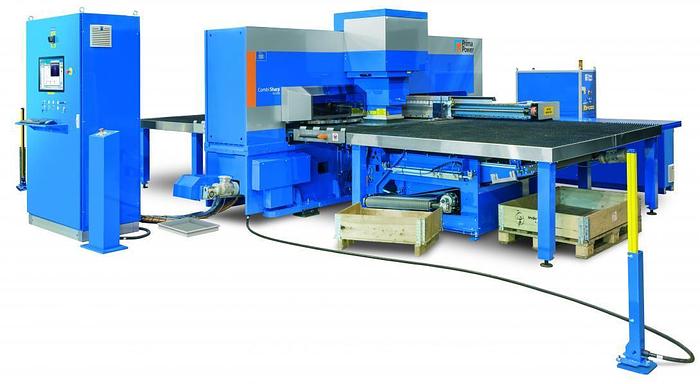

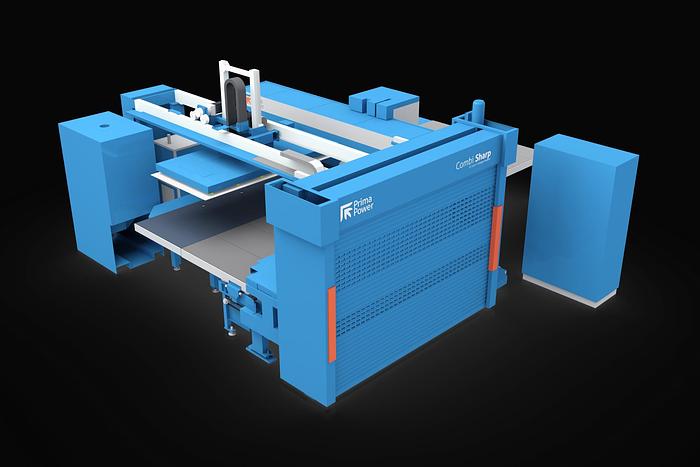

Prima Power Combi Sharp

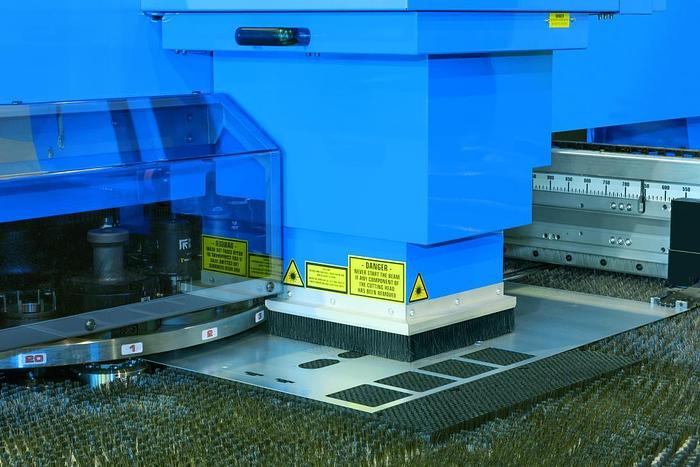

PUNCHING AND LASER CUTTING COMBINED MACHINES Integrated punching and laser cutting at an affordable price FABULOUS FIVE Punching, forming, marking, bending, laser cutting - all in one HIGH PRODUCTIVITY High speeds, ease of operation, minimum set up times COMPACT LAYOUT Small floor space needed even with automation modules LOW ENERGY CONSUMPTION Servo-electric punching and fiber laser cutting technologies, no laser gas required HIGH TOOLING CAPACITY Customized turret design allows up to 384 standard or 128 index tools for active use. Combi Sharp is a compact punching and fiber laser cutting cell with high accessibility. Two resonator alternatives and large tooling capacity offer superior productivity at a profitable price. The optimized cutting head, collimator, transfer fiber and cutting parameters ensure a very high cutting quality up to 8 mm material thickness. Modularity is power In the core of the machine is Punch Sharp, a modular solution to grow to a combi machine also afterwards if your production directs towards more complex parts. Easy cover protection system New safety system allows easy access to the machine, manual loading of sheet and unloading of large parts and skeleton is convenient to perform. The control panel is integrated in the electric cabinet for easy cabinet placing and easy access to machine controls. This multitasking control allows work preparation, program background editing and set up while the machine is running. TOOLING The large number of tools with Prima Power punching machines results from a set of technical features which is not available from any other manufacturer: • Two turret construction alternatives: 16 and 20 stations • Multi-Tools® • A vast variety of special tools • Rotating Auto-Index system The Punch Laser combination equipped with servo-electric punching provides both fast nibbling speeds and the possibility of using low ram speeds when employing forming tools or for reducing the noise level with large-diameter tools. The fully programmable stroke length gives a variety of possibilities in forming operations, all the way up to bending. The optimized cutting head, collimator, delivery fibre and cutting parameters guarantee the highest cutting quality and speed in the market for the Prima Power combi machine. The high-quality fibre lasers are available with Prima Power CF resonators at two cutting powers.
