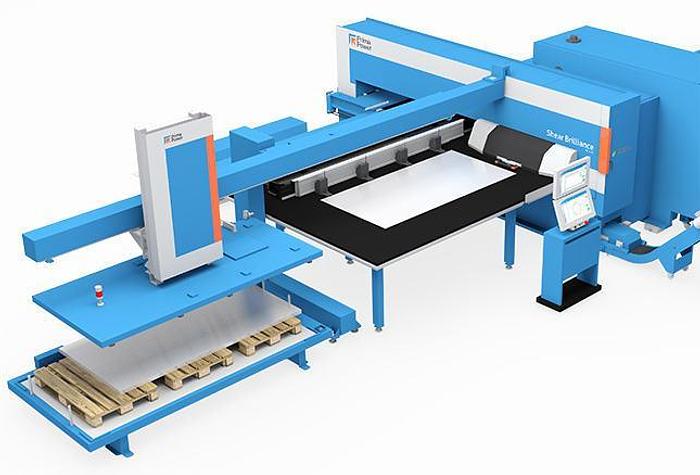

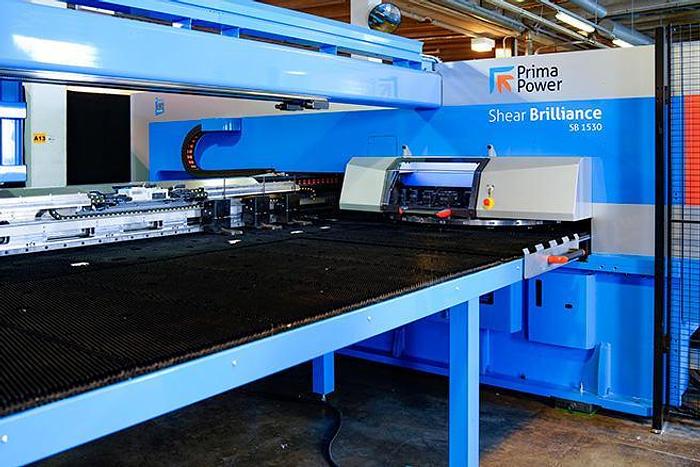

Prima Power Shear Brilliance

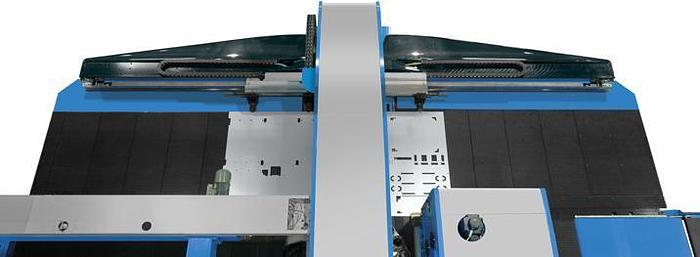

PUNCHING AND SHEARING COMBINED MACHINES Outstanding productivity FAST Hit speeds up to 1,300 hpm. Fastest hit rate available for fabricating full format sheets ACCURATE Supreme positioning speed, accuracy and precision. Time savings and improved quality during processing. EASY Automated flexible fabrication. Less manual labour, higher throughput. SMART Savings in raw material: no skeletons, less punching scrap. Prima Power Shear Brilliance is based on the very latest in composite materials, servo-electric technology, and linear drives to achieve truly impressive performance values which translate into a new level of productivity in versatile, flexible fabrication. The vast majority of all sheet metal components fabricated are rectangular, so a highly economical method to produce them is to perform first punching and then shear the components loose in the same automatic process with an integrated right angle shear. Also, parts with three or two straight edges are perfect for fabrication with a right angle shear. The Prima Power right angle shear is extremely fast in operation. Programmable blade height and automatic stroke depth adjustment optimize shearing. The blade speed is automatically selected for the maximum speed. Together with automatic shearing modes, this optimizes operation speed. Shear Brilliance can be easily connected to automation systems in order to automatize the material and part flow and further increase the output. Prima Power's ECOPUNCH® concept is an astonishing money saver in terms of energy consumption. Compared to the traditional method Prima Power can produce more parts at the same energy. HIGHLIGHTS Loading in hidden time more production time available Hit speeds up to 1,300 hpm fastest hit rate available for fabricating full format sheets 3,100 mm common working area punching and shearing without repositioning More force (300kN / 33 US tons) Complicated contours with one hit High tooling capacity huge savings in set-up times, flexibility in production Supreme positioning speed, accuracy, and precision Time savings and improved quality during processing AUTOMATED FLEXIBLE FABRICATION Less manual labour, higher throughput SAVINGS IN RAW MATERIAL No skeletons, less punching scrap HIGHER NESTING UTILIZATION More parts in one sheet BETTER QUALITY No nibble marks in part edges FAST, ACCURATE AND RELIABLE SHEARING AND PART EXIT Less labour, better part quality LARGE TOOLING CAPACITY The large number of tools with Prima Power punching machines results from a set of technical features which is not available from any other manufacturer: Two turret construction alternatives: 24 and 30 stations Multi-Tools® A vast variety of special tools Rotating Auto-Index system Intelligent ram Max sheet size SB1530 3,100 mm x 1,565 mm SB1540 4,300 mm x 1,565 mm Total work area X x Y without repositioning (loading-punching-shearing) (SB1540) X movement 5040 mm Positioning speed up to 210 m/min Ram force 300kN (33 US tons) Max. tools in turret / Max. index tools 600 / 576 Hit speeds 1 mm 1,300 hpm 25 mm 580 hpm 250 mm 235 hpm marking 3,000 hpm
