Sunrise Semi CNC

Sunrise Semi-Automatic CNC solutions offer advanced technology and automation for efficient and precise fabrication. With the ability to be factory-ordered on any dual-cylinder ironworker or punching machine, Sunrise provides versatile solutions for various industries. These CNC systems feature user-friendly interfaces, programmable controls, and high-quality components to ensure accuracy, repeatability, and productivity. From semi-automated punching and shearing to long linear lengths of consecutive holes, Sunrise Semi-CNC solutions empower businesses to streamline their operations, increase productivity, and deliver exceptional results in metal fabrication processes. Sunrise PC Controller + Software

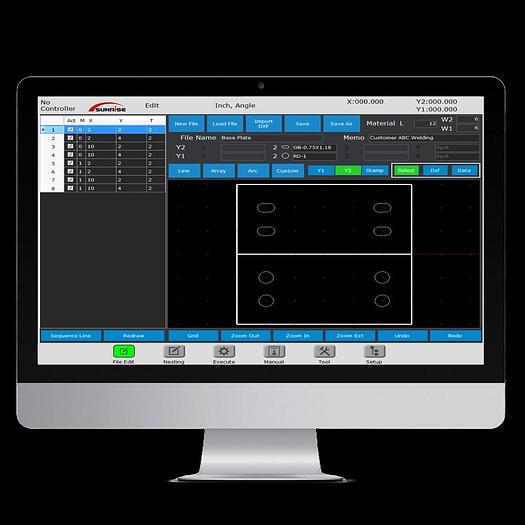

The Sunrise software was designed to eliminate time-consuming layouts and extra scrap from manual layout errors. The Sunrise software gives you complete control over all aspects of your machine. From built-in error-sensing technology to manual movement, each aspect of the machine is monitored. Built-in logs, a tool library, DXF/NC1 import, and more are just the beginning. Add the ability to manually control your workpiece, group files to make a complex program, and auto-fill your pieces to nest the entire material. The choice is yours. Semi-Automatic CNC Positioning

The Semi-Automatic CNC positioning tables from Sunrise are plate and angle positioning systems with touch-screen interfaces. They can be factory-installed on dual-cylinder ironworkers or punching machines with a throat depth of 20″ or more. The CNC operation and programming use a pendant-mounted controller, allowing easy programming and robust durability. The operator positions the material against the CNC-controlled X and Y stops and initiates the punch program. Upgrade options include a Windows PC Controller with a 15″ Touch-Screen, WiFi, flash-memory-based Nexcom computer, and a CNC Plate Shear System for enhanced versatility. Available CNC Table Sizes – Mounted on either an Ironworker or Single-End Punch with 20″ or larger throat depth: 16″ x 40″ | 16″ x 80″ | 16″ x 120″ | 26″ x 40″ | 26″ x 80″ | 26″ x 120″ Positioning Speed (Both Axes): Up to 590″ per Minute Variable Speed Accuracy: +/- 0.004″ / Foot Optional Equipment

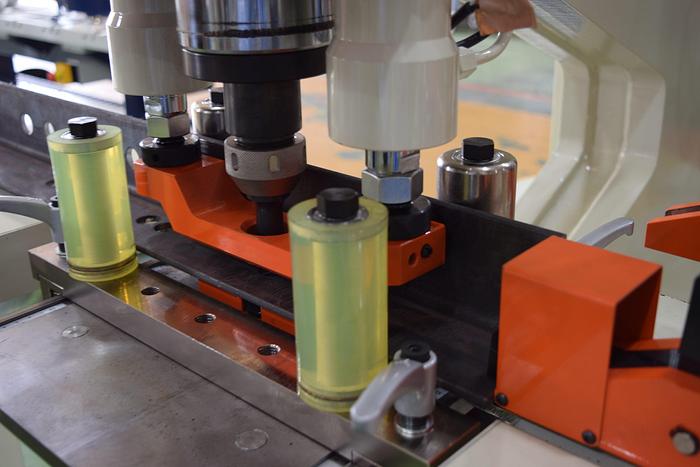

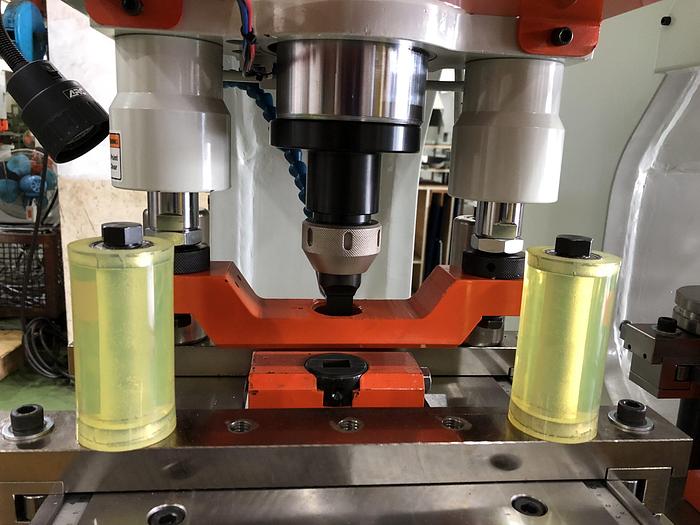

15″ PC Controller Hydraulic Shear Hold-Downs Hydraulic Stripper Auto Punch Lubrication System Hydraulic Oil Cooler Triple Punch System And more! Sunrise ANC Still punching long material by hand? The Sunrise ANC combines an ironworker or single-end punch with a fully automatic CNC in-feed system for efficient punching only of flat bar, angle, and channel webs. It achieves high accuracy, repeatability, and efficiency with robust construction and precise components. The 7″ touch-screen controller allows easy programming, and the system includes a hydraulic punch stripper and pneumatic material clamping for seamless production. It has an in-feed roller table, specially designed strippers, and punching accessories. The Sunrise ANC is expandable up to 40′ in-feed based on material requirements, offering enhanced versatility for various applications. Available Sizes:

20′ up to 40′ of automated in-feed Must be factory installed on to any SUNRISE Punching Machine or Dual-Cylinder Ironworker. X-Axis Positioning Speed: 490″ per Minute Punches Per Minute: Up to 41 (3/4″ Stroke) X-Axis Accuracy: +/- 0.004″/foot

Standard Equipment

7″ Touchscreen Programmable Controller

150 Program Memory

Pneumatic Material Clamping

Wide variety of custom tooling available!

Optional Equipment

Expandable to 40′

Multi-Punch Options

Safety Mat

CNC Plate Shear The CNC plate shear system is a professional-grade, factory-installed addition for any Sunrise dual-cylinder ironworker. It offers standard touch-screen programming for seamless operation. The CNC plate shear system maximizes efficiency by eliminating manual shearing time and plate positioning. Operators have full control over material length, cut lengths, and desired quantity. Equipped with knurled drive rollers, hydraulic hold-down, and proximity sensors, the system ensures precision and produces top-quality parts during automated plate processing.

Available Sizes: 16″ – 30″ Widths – Up to 1″ Thickness – based on ironworker model. Only factory installed.

Positioning Speed: Up to 40′ per Minute – Variable Speed

Accuracy: +/- 0.006″/ Foot

Standard Equipment

1KW Mitsubishi servo motor driven knurled pinch roll that prevents slippage using dual-encoders for positioning accuracy

OMRON Touch-Screen Controller featuring multi-program memory with basic nesting ability and cut lists

Hydraulic Plate Hold-Down required

Hydraulic material clamping with dual proximity sensors for material edge detection

Adjustable guide rollers for squareness, including urethane rollers

Four feet of manual in-feed conveyor included
