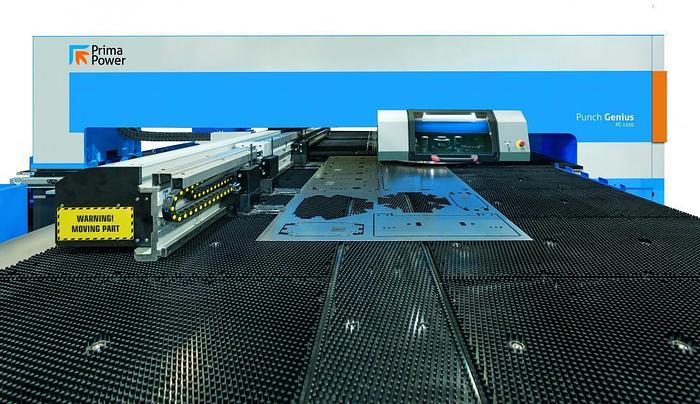

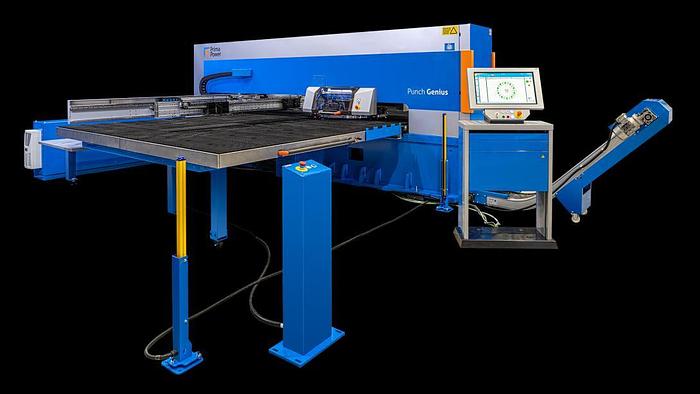

Prima Power Punch Genius

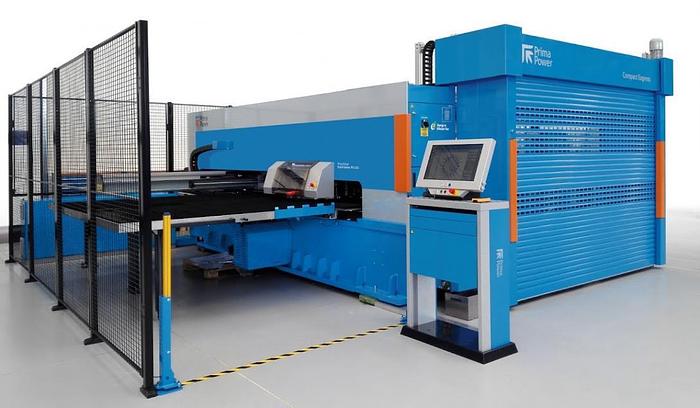

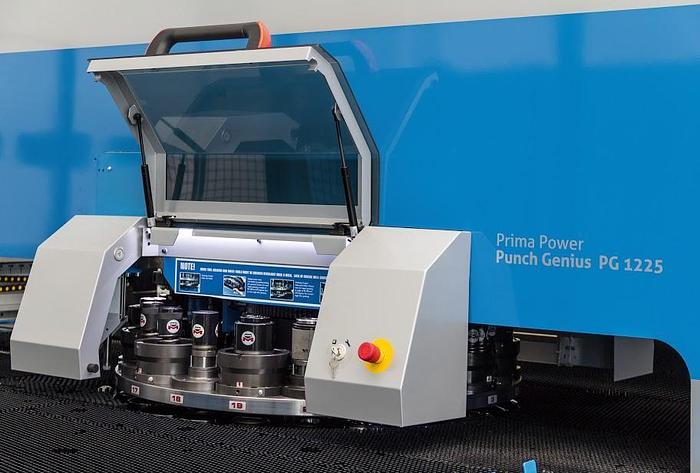

PUNCHING MACHINES Outstanding energy efficiency, low maintenance requirement and a high speed of operation. ACCESSIBLE Easy to use and monitor. INTELLIGENT RAM More tools in turret and shorter tool change times. SCRATCH FREE Vertically moving brushes prevent the scratching of sensitive materials. MODULAR TECHNOLOGY Manufacturing cell can be equipped with automation solutions to achieve unattended production Prima Power turret punch press uses numerically controlled, servo-electric axes, which provides outstanding energy efficiency, low maintenance requirement and a high speed of operation. The cornerstones of its productivity include large tool capacity, the wide range of tools available and easy and fast setup change. Forming and other auxiliary work stages, and ease of use are further factors reducing the manufacturing cost per component thus making the turret punch press a productive and competitive manufacturing solution. Prima Power's ECOPUNCH® concept is an astonishing money saver in terms of energy consumption. Compared to traditional method Prima Power can produce more parts at same energy. 23 ton and 30 ton punching force as standard, depending on selected performance. 20 station turret with 16 normal tool holders (A, B, C, D) and four index tool holders (2 x Bi, 1 x Ci, 1 x Di). Max. 384 tools in the turret for active use. Turret is compatible with Amada® tools. Two sheet clamps with central locking and foot pedal. Optional third clamp available for better grip and support for larger sheets. LARGE TOOLING CAPACITY The large number of tools with Prima Power punching machines results from a set of technical features which is not available from any other manufacturer: • Two turret construction alternatives: 16 and 20 stations • Multi-Tools® • A vast variety of special tools • Rotating Auto-Index system • Intelligent ram Modular and easy to automate. Three models: PG1225, PG1530 and PG1540 Max sheet size PG1225: 2,500 mm x 1,250 mm PG1530 / X25: 3,000 mm x 1,250 mm PG1530 / X30: 3,000 mm x 1,500 mm PG1540: 4,300 mm x 1,500 mm Max. sheet thickness: 8 mm Customized turret Max. tools in turret: 384 Max. index tools in turret: 128 Two performance levels: Pure and Dynamic The new Genius series has models on two complementary performance levels. Pure meets all the targets set for an attractively priced, yet efficient production machine; Dynamic offers the best productivity and performance in the market. Both models come with the latest features and can be equipped with the whole range of options. Ram force, max. PG Pure: 230 kN (25 US Tons) PG Dynamic: 300 kN (33 US Tons) Hit speed, max. PG Pure: 700 hpm PG Dynamic: 1,000 hpm Positioning speed PG Pure / X25: 108 m/min PG Pure / X30: 127 m/min PG Dynamic / X25: 127 m/min PG Dynamic / X30: 150 m/min Index tool rotation speed PG Pure: 180 rpm PG Dynamic: 250 rpm
