Prima Power hP Series

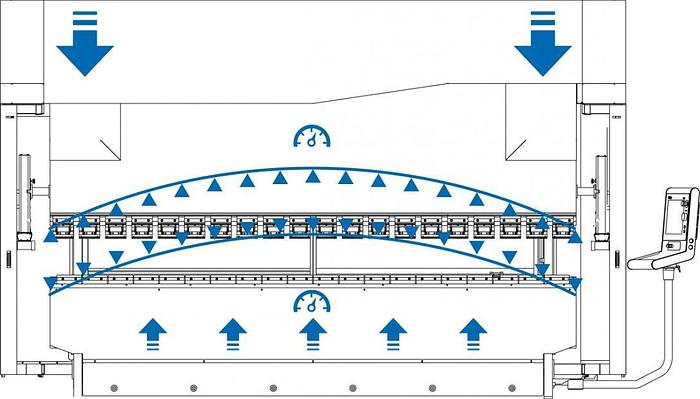

PRESS BRAKES ECO hydraulic bending solution for high tonnage market PRODUCTIVE Highly productive thanks to reduced cycle times and higher process reliability. FLEXIBLE Suitable for a wide range of different products. REPEATABLE Consistent performance over time thanks to hydraulic technology. MODULAR Capable of meeting any production need, with a variety of possible configurations. Prima Power hP-Press is the hydraulic response for the high tonnage market. It is the perfect combination of force and versatility of the hydraulic technology as well as the combination of energy saving and sustainability of the ECO package. The Adaptive Crowning and the Reflex System make this press brake the most accurate machine in the today’s market. The hP can be connected in tandem, or integrated into automated lines or robotic cells. Adaptive Crowning To avoid and compensate any deflection of the frame, a triple bottom table is supplied. This solution allows installing the Adaptive Crowning with the advantage to measure the ram deflection and to compensate in real time, in order to manage the material variability. Two precision sensors adapt in real time to the ram deformation: the first one detects the ram yield from the beginning of the bend, the CNC activates the cylinders in the lower ram until the reading of the second sensor is equal to the first one. This leads to the complete control at maximum precision and absolute repeatability, with any material. Reflex Compensation System During the bending, the side frames are subject to strong forces that cause the deformation of the throat area. This effect is shown in the top beam moving away from the lower beam, compromising the accuracy of the control systems. Reflex controls the deformation of the side frames thanks to different machine sensors and its hydraulic circuit. The position of the ram is always under control during the bending process to guarantee the repeatability of the angle, whatever the part length, thickness variations, part positioning and sheet characteristics. From 200 ton to 1000 ton From 2000 mm to 12000 mm Tandem configuration available Genius configuration (tool change system) available for all hP sizes.
