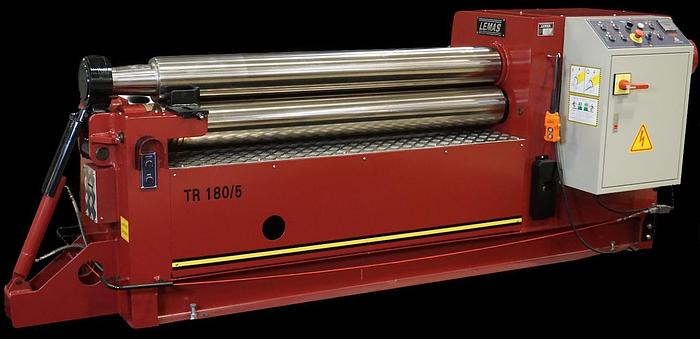

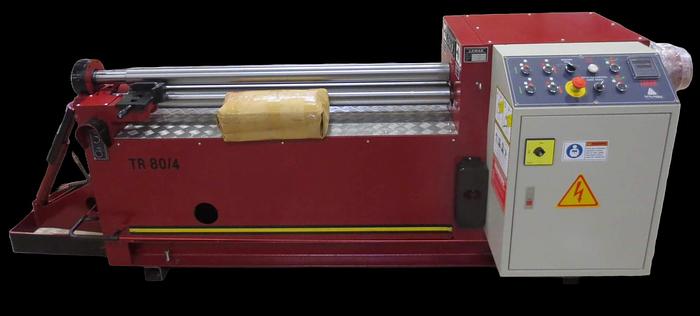

Lemas TR Series

The LEMAS TR Series capacity ranges from 3′ to 10′ in length, and up to 5/8″ thick. The LEMAS TR Series initial pinch bending rolls feature hydraulic adjustment of the rear bending roll and the lower pinch roll. In addition, the rear roll is hydraulically tiltable for cone rolling, and the hydraulic drop end makes it simple to remove the completed cylinder from the rolls. Unique to LEMAS initial pinch machines is the Quick and Easy pinch gauge adjustment. Consistent positioning of the lower pinch roll is critical to rolling consistent quality cylinders. By simply inserting a small tab of the material thickness to be rolled into the pinch gauge control, the lower pinch roll is properly positioned to ensure consistency. Other standard features include Direct-Drive Design using no belts, cone rolling attachment, rolls heat treated to 50Rc, digital readout for positioning the rear bending roll, and grooves for 1/4″, 3/8″ and 1/2″ round bar (except 80 series models). Standard Features -Direct-drive design using no belts or chains -Less maintenance, better performance -Spherical roller bearings on all rolls -Hydraulically powered bending roll – No manual adjustment needed. -Power tilting side bending roll for cone rolling – No need to manually adjust for cone bending -Cone bending attachment – Already integrated for your cone bending needs -Control panel with digital readout for the position of the side bending roll – All machine controls are easily located. -Hydraulically operated drop-end for quick removal of rolled product – Easy open allows you to easily slide out the finished part -Forward/Reverse rotation controls – Ability to walk around the entire machine while controlling rotation -Upper and lower pinch rolls driven -All rolls heat treated to 50 Rc – Keeping your rolls in peak condition as long as possible -Sumitomo Cyclo® 6000 gear-less speed reducers – The hardest working in the industry. -Manual tilt of the lower pinch roll -Emergency stop cable -Hydraulic oil, tools, training video, schematics, technical manual Optional Equipment Top support Infinitely Variable Speed Control Control panel on wheels And more Custom-designed plate rolls are also available. This can be a special roll diameter or roll length or even the shape of the rolls. Grooves or hardened rings enable the rolling of plates with flanges. Never hesitate to ask us for advice!
