MIGNON Series

The MIGNON Series Initial Pinch Roll Benders are designed for small profiles and tubes. Both units are bench mount types and are available in electric drive and manual crank drives. Mignon machines are single initial pinch types with 3 DRIVEN ROLLS for optimal traction when rolling tight diameters. Frames are steel alloy with bolted construction. High strength shafts are hardened and ground. Bending roll shaft adjustment is manual. Version 025 includes an mechanical counter to monitor bending roll shaft position.

Units are furnished without rollers as most uses are for dedicated production. Carell will make these optional roll sets per your bending needs. Units furnished with an instruction manual and service guide as well as service and adjustment tools.

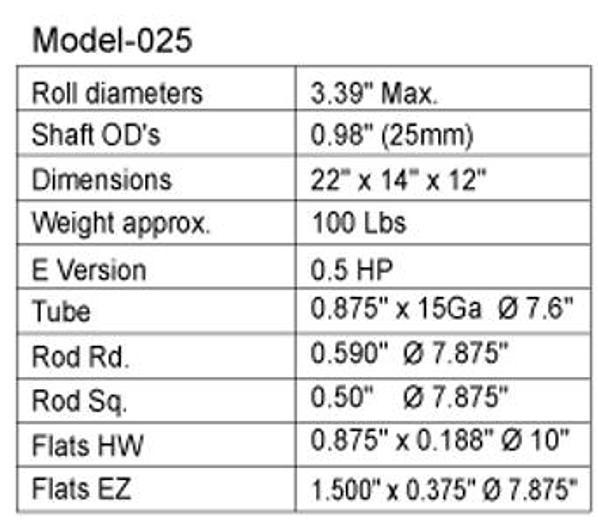

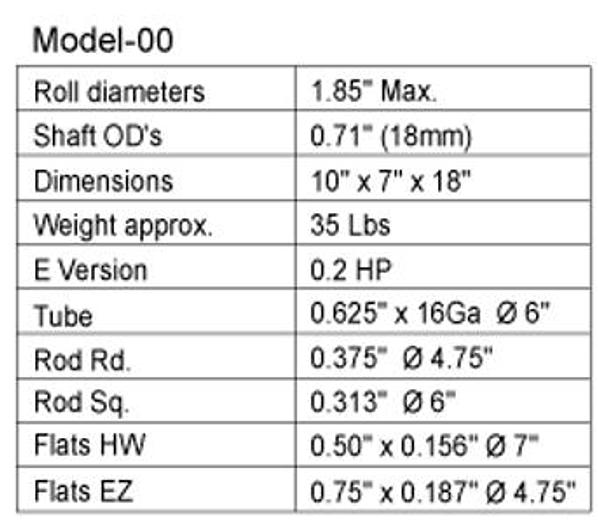

Model-00 Tube 38' - Flats 3/4" Model-025 Tube 7/8" - Flats 1-1/2"

MIGNON Series Features

Portable, Single Pinch Small Profile Bench Mountable Units

Rugged, Steel Alloy Bolted Construction Frames

Available in Electric Powered or Manual Rotation

3 Driven Rolls for optimal traction

Options

Rolls for tubes pipes, and special profiles

Tooling for production of half tubes

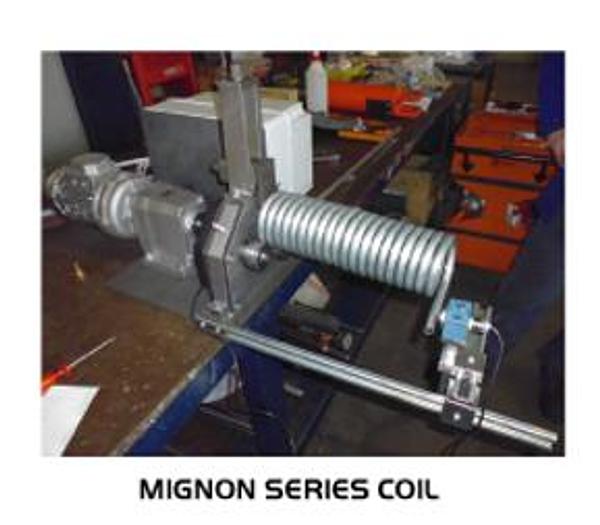

Overhead Supports for coil production

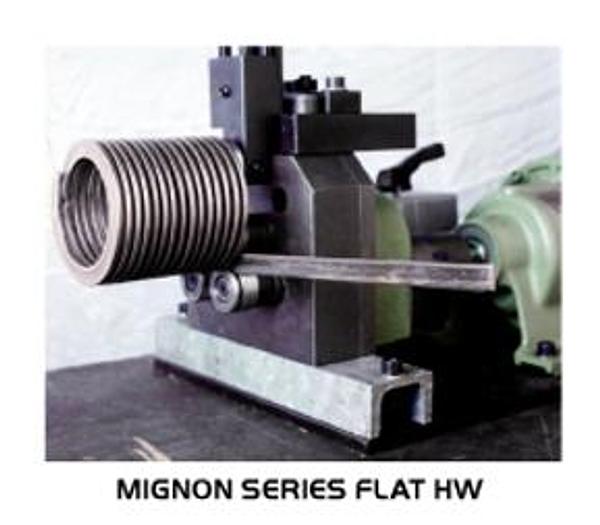

Compression and Tension tooling for C, & I hard way

NC and CNC Controls with various automation levels for repetitive jobs and production of variable radius bends and parts with multiple bends

LED digital displays for movements on lateral material guides

Hardened High Strength Shafts

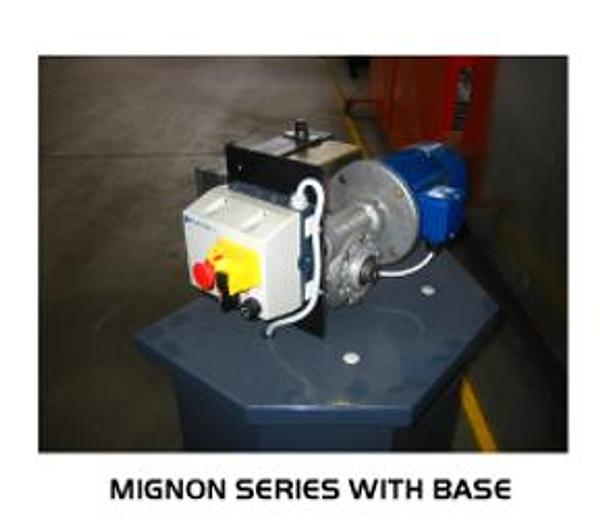

Optional Coil Calibration and Support Base Stand
