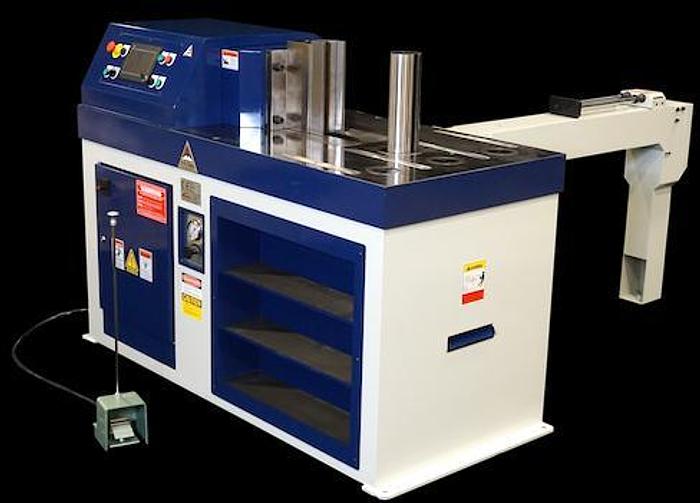

Sunrise HBM Series

The SUNRISE hydraulic bending machines – HBM, are available in either 45 or 82 tons, with a 8″ x 1/2″ or 12″ x 1/2″ capacity, and offer a wide range of tooling for different bending operations. Custom tooling is also available. HBM Standard Features: Excellent repeatability of stroke with an accuracy of +- 0.004″ with Digital Linear Encoder and Proximity Sensors Programmable touch screen controller – 50 Program Memory Name-brand electric and hydraulic components ensure machine reliability CNC machined one-piece solid table design A wide range of standard and custom tooling is available. A manual back gauge is included for accurate positioning. Capacities: 45 or 82-ton Models 10″ and 14″ Stroke Standard Features Touch screen controller with 50 program memory Manual back gauge 3″ single vee die and punch 2 Year Warranty on Parts Optional Features Single and multi-dies Flat bar bending, pipe bending, punching, shearing CNC back gauges Custom tooling

HBM CNC Backgauge

The CNC back gauge extends the accuracy and efficiency of the HBM and is available in both 1m and 2m configurations. With an accuracy of ±0.004″ and 40’/min travel speed, when combined with the digitally controlled cylinder travel, achieves complex bending work with ease. Control memory can store up to 99 programs with 10 bends each for quick and easy programming of multiple jobs.
