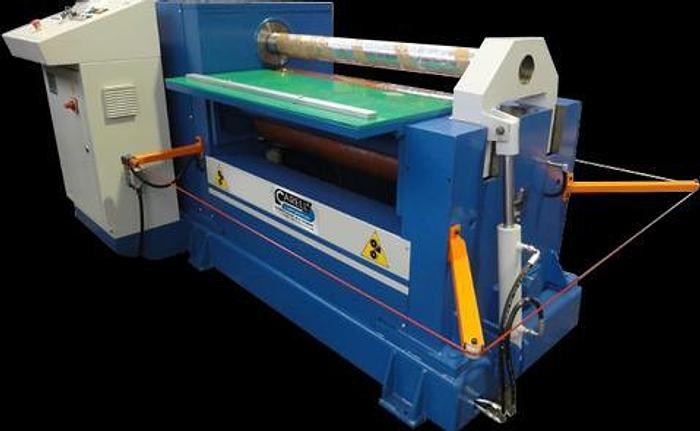

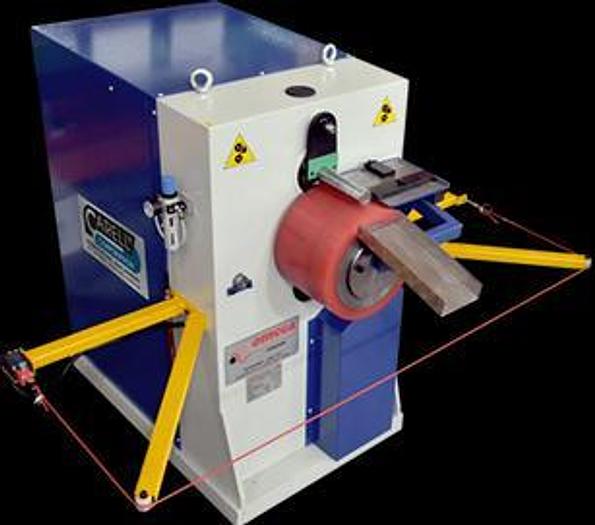

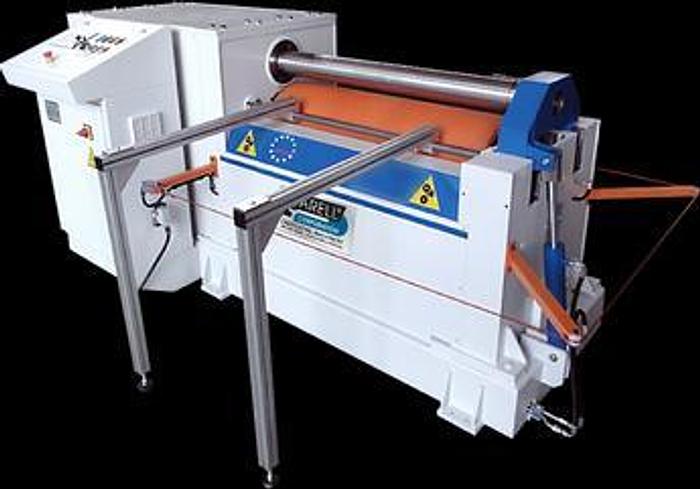

Carell 2 Roll

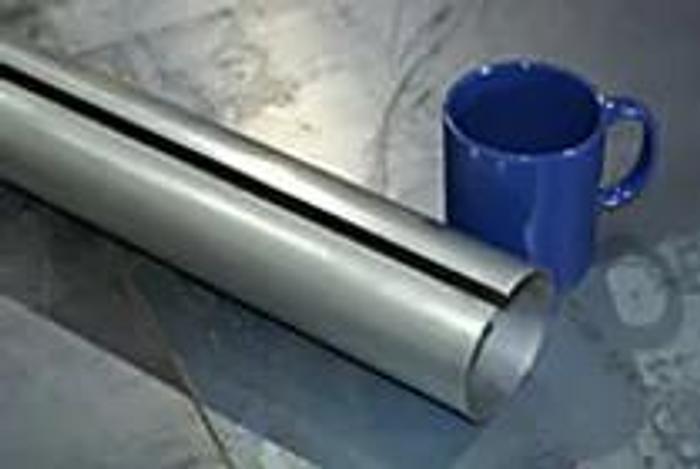

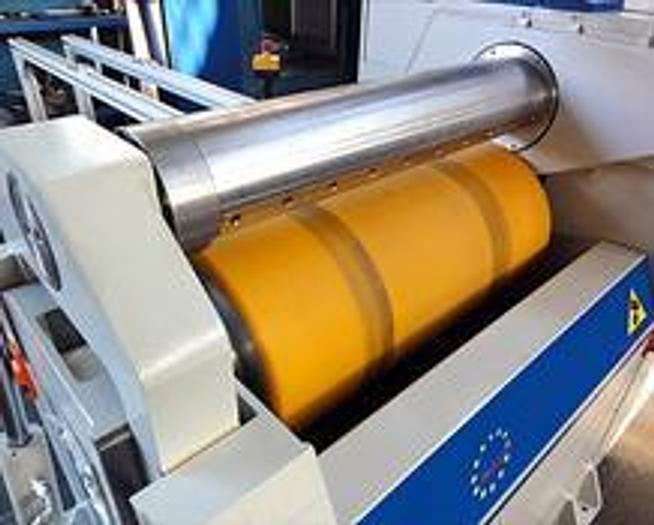

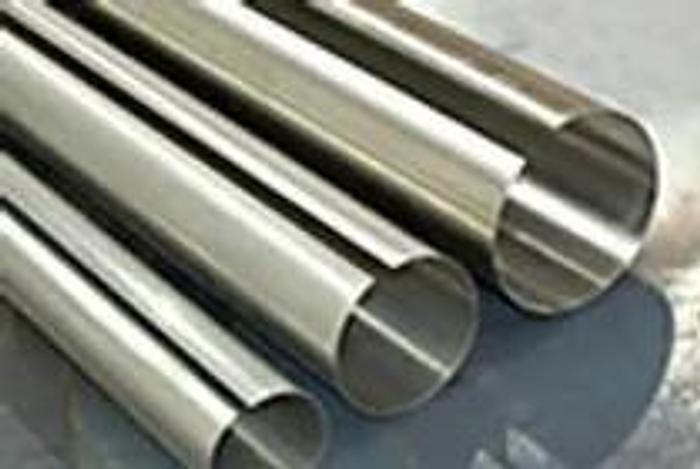

2 Roll Plate Rolls Perfect Rolling Without Surface Marring or Contamination! Our 2 Roll Units are designed to rapidly produce radius and cylindrical parts from start to finish at the touch of a button in a cost-effective manner. Machines engineered for high speed continuous production. Easy setup using durable mechanical and electric limit devices. Add an auto loading and ejector system and the unit becomes a powerful tool, reducing part throughput & handling time to an absolute minimum. STANDARD FEATURES High speed one pass rolling Quick set-up and adjustment Eliminates leading flat ends Tight tolerance rolling of round parts even using sheets with cutouts, voids and perforations Machine frame in heavy steel plate and structural sections, electro-welded, stress relieved and precision CNC machined Urethane roll driven by electric motor, inverter and gear reduction or hydraulics Powered drop end actuated in automatic or push buttons Top roll sheet support arm, manual preset, max. diam. 27” All rolls mounted in spherical roller bearings Urethane roll stroke setting via precision dial gauge hand wheel or electrics Urethane roll pinch carriage up/down by hydraulics Sheet feed support with squaring arm Low Voltage Controls, mounted on detached command pulpit with push button controls, positive leveling of lower roll Manual forced lubrication OPTIONAL EQUIPMENT Sheet-Loading systems Cylinder ejector systems Automated sheet alignment systems Sheet pallet shuttle systems Special machine configurations for dedicated production jobs Various Overhead Support configurations NC & MULIT-AXIS CNC Controls for Automatic Production 2 Roll Models are available in lengths From 20” to 78” and 28 Ga to 0.125” thickness Dedicated Cylinder Rolls or Dedicated Cone Rolling Machine No finish deterioration of part surface The High Durometer Urethane coated lower roll allows perfect rolling of polished aluminum alloy, stainless steel or mirror finished materials without surface marring or contamination. Reduce / Eliminate un-bent flats and produce perfectly aligned seams with maximum pressure between the top and pinch rolls, perfectly parallel seams are achieved with virtually no un-bent flats. Choose from over 30 standard sizes. All can be tailored to your specific production needs. Carell 2 Roll Auto-cycle machines can also be built as production cells.
