Eagle Bending Machines CP Series

CPS Series Roll Benders

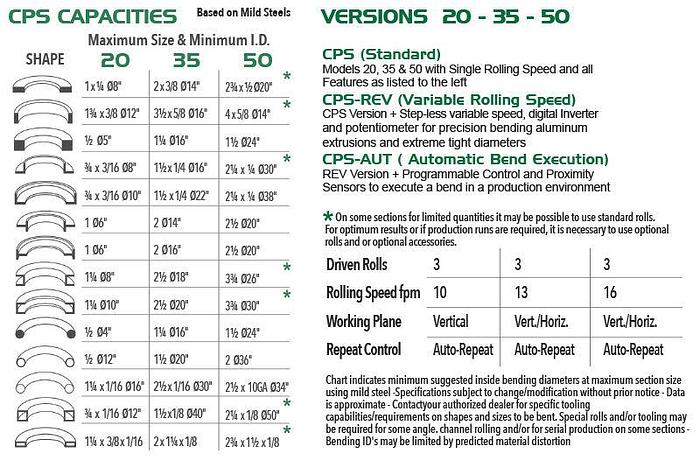

CPS-20, CPS-35, CPS-50 1" - 2-1/2" Capacity

POWERFUL EAGLE CPS Series Roll Benders are Hydraulic, Initial Pinch Universal Roll Bending Machines with all 3 rolls driven and primarily designed for One Pass Rolling. They are The Choice for production settings and coiling operations. The CPS Series Roll Bending Machines offer features that are beyond comparison. Several Versatile Versions give you Renowned Eagle Quality and the best solutions to fit your budget. You benefit from over 24,000 machines produced over many decades of manufacturing innovation and experience.

Compare our Features & Benefits and Make the Best Decision for your Company!

STANDARD FEATURES & BENEFITS FOUND ONLY ON EAGLE BENDERS:

Solid Steel Main Frames, CNC Machined and Stress Relieved are the heaviest in the industry and eliminate troublesome castings. Our machines do not require external shaft tie bars when bending heavy sections

Limited Lifetime Warranty on all of our machine main frames is standard

NEW DP7 Auto-Repeat Programmable Control with 40-position memory on hydraulic versions for repeat bending and will Display Your Bending Radius when used with our Optional Digital Radius Instrument

Large High Brightness LED Readout on all models to monitor the bending roll position

CPS 20, CPS 35 & CPS 50’s Operate in Both Vertical and Horizontal Positions

All 3 Shafts Driven and all tooling components are smooth surfaced, non marring

Standard Universal Tooling Set has 15 Components and manufactured from Hardened Tool Steel 55HRC

Hardened Steel Shafts are journaled Dual Tapered Roller Bearings

Patented Z-Block Top Journal Increases Rigidity for truer to plane rolling

Hardened/Sintered Guides & Ways with Adjustable Gibbs on every Eagle Bender

Dual Foot Pedal Controls for forward/reverse rolling have Steel Protective Covers

Anti-Pinch’ Mill Scale Covers protect internal components from mill scale and are an extra safety feature

Concealed Internal Hydraulic Ram cannot be damaged by accident, nothing is exposed

Dual Emergency Stop Buttons 1 on machine + 1 on the console for enhanced operator safety

Flush Mounted Electrical Panels are out of harm’s way in your shop environment

Easy Access Tool Storage Compartment in the machine base for convenience

Mobile Control Console with long trailing lead allows safe operator distance from the work-piece

Renowned Brand Name OEM Components are non- proprietary and available worldwide

OPTIONAL TOOLING

Eagle maintains a wide variety of Optional Tooling designed and manufactured In-House in steel or polymer materials for a wide variety of special profiles AND extrusions. We offer several solutions for Cap Rail Tooling to suit your budget and rolling needs. Send us samples and drawings, we do the rest for you!

ACCESSORIES - We stock Round Tube & Pipe Roll Sets, Angle Rolling Tooling for Leg-In & Leg-Out, Wide Flat & Tight Diameter Rolls, Replacement Roll Components, V-Groove Rolls for rolling square tube on the ‘diamond’ as well as Coiling Calibration supports. We maintain thousands of replacement machine parts in stock for rapid delivery!
