Dener BS Series

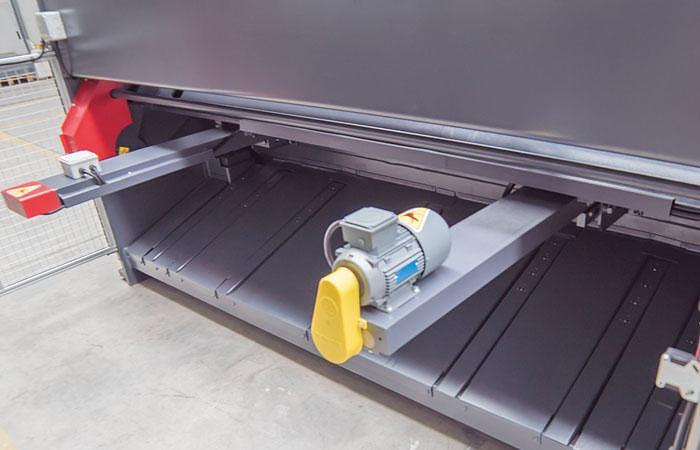

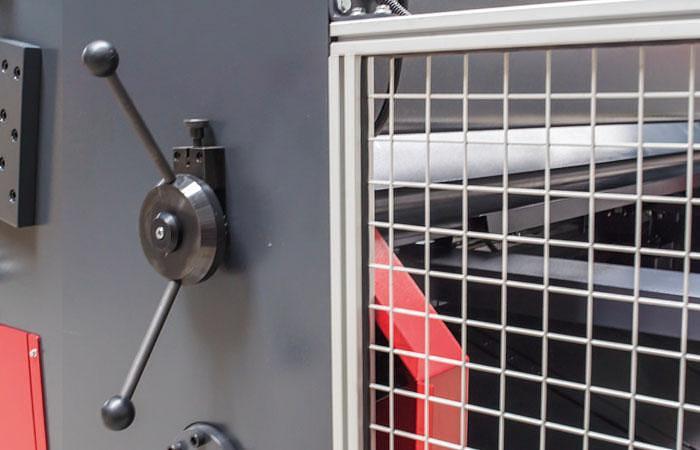

BS SERIES SWING BEAM SHEAR Better quality and faster cuts. Strong and durable body structure. Manual gap adjustment and cutting angle High precision and easy handling. Low maintenance costs. High security protection. World wide reliable component brands. Low cutting costs. BS Series Swing Beam Shear Easy, accurate, rock solid welded steel construction proven design that thousands of customers across the world have come to rely on. Dener Swing Beam Shears are starring form 6 mm up to 20 mm thickness and cutting lenght from 2 m up to 6 m as a standard and according to the special demanded higher capacity machines are available. Main features of the Swing Beam Shears are; NC controller for Back Gauge, single point manual blade gap adjustment, 1000 mm motorized ball screw back gauge, cutting length adjustment by timer, 1 m flip up front guarding, Sheet support arms and squaring support, sheet slider table and back slider. Standard Equipment • Dener Ht 071 NC Control unit • Hydraulic hold hown pads • Ball integrated front tables • T-slot front feedings arm • Motorized backgauge system • Foot pedal with emergency stop button • Front Protection Frame Optional Equipment • Safety system for CE norms. • Manual Centralized Lubrication System • Oil Cooling System • Pneumatic thin sheet support system • Laser cutting line
