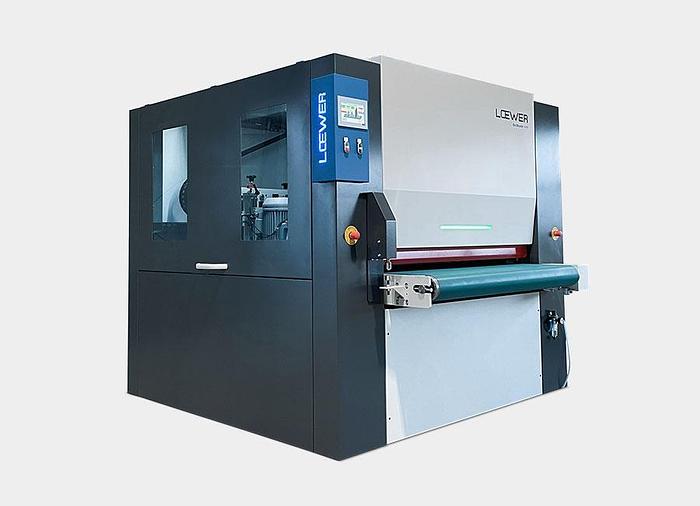

Loewer Beltmaster K4TD-1350

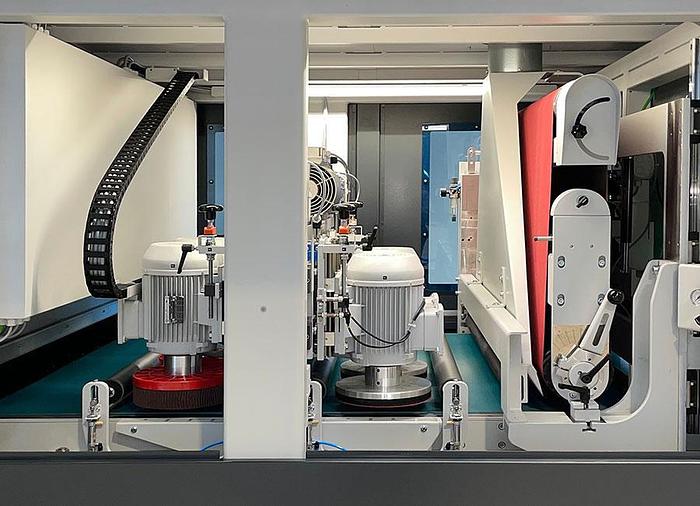

The BeltMaster K4TD is equipped with one abrasive belt unit followed by two oscillating disc units, each with two large rotating discs, making it ideal for grinding, deburring, edge rounding and oxide removal. One pass operations, depending on the setting Deburring, oxide removal and edge rounding in one pass Deburring higher parts of burrs, additional deburringand edge rounding in one pass Deburring, coarse edge rounding and finer edge rounding in one pass Deburring and edge rounding of small parts with discs only Finish grinding with abrasive belt only The 360° processing principle The work pieces are placed on a conveyor belt. The abrasive belt unit will remove higher burrs. Two rotating discs in the centre of the machine followed by two rotating discs at the out feed side oscillate continuously over the full width of the work piece. Inside and outside edges are processed from all angles and directions. The result is a uniform deburring and edge rounding independant of the orientation of the cutting contours. It is possible to use different disc tools in the centre and on the outfeed discs, depending on the application. The additional abrasive belt unit The BeltMaster K4TD is based on our unique tried and tested Discmaster 4TD but features an additional abrasive belt unit on the infeed side. The abrasive belt unit removes higher burrs or creates a grinding finish on the material (option „variable belt speed“ required). A large variety of abrasive belts and nylon abrasive belts are available for different applications. Product Downloads Product Documentation
