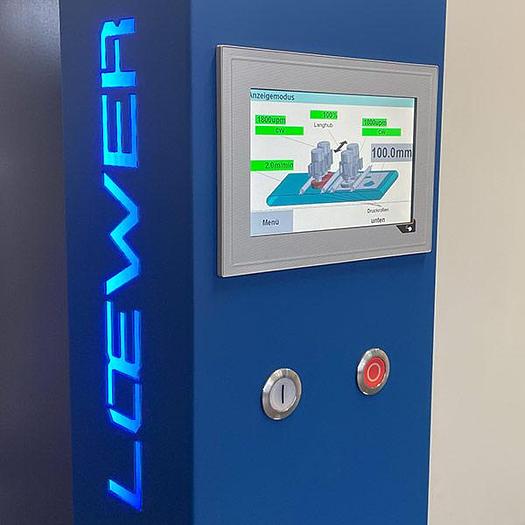

Loewer Discmaster 4TD1000

The DiscMaster 4TD is equipped with two deburring discs and two edge rounding discs. The discs oscillate continuously over the workpiece during throughfeed. The interaction of the rotation with the large oscillation stroke leads to high quality deburring and edge rounding results. The large variety of disc tools available makes the machine very versatile. Large oscillation stroke over full width of the feed belt All inside and outside edges are processed from all angles and directions Even wearing of abrasive tools irrespective of the size of the workpiece or where it is placed on the conveyor belt. Quick change of tools when switching between materials – only four discs need to be changed Large variety of disc tools available makes the machine very versatile Possibilities For deburring and edge rounding laser-cut, plasma-cut and water-cut parts For deburring and edge rounding 3D punched parts For edge rounding and orbital finishing in one pass Processing of small parts from 20mm x 20mm Processing of foil-covered or zinc-plated parts Processing of steel, stainless steel and aluminium Working widths: 1000mm, 1500mm and 2000mm Smallest part size: 20mm x 20mm Material thickness: 0,3mm – 70mm (100mm)
