Description

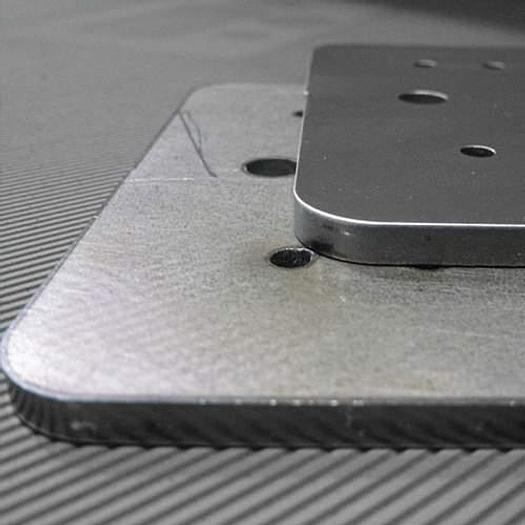

Edge rounding up to 1100mm Ideal for edge rounding of light burrs up to 1100mm working width. Metal deburring and edge rounding machine – DM1100 C – performs edge rounding and removes sharp edges on both external and internal contours of stainless steel, steel or aluminium parts either cut in laser, shear or punching machine. This machine works metal parts of different dimensions including products as small as 50x50mm. DM1100 C – Metal Deburring Machine has a station with double cross belts for the metal deburring and edge rounding, leaving clean, soft and burr-free edges on the complete parts.

Specifications

ManufacturerNS
ModelDM1100C
ConditionNew
Working capacity (mm)1100x50
No. cross belt stations1
Cross belt speed (m/s)2-8
Feeding speed (m/m)0.6-3.2
Cross belt motor (kw)(2x) 3
Feeding motor (kw)0.18
Total power (kw)6
Consumption (a)18
Dust extraction connection per head (ø mm)150
Dimensions (mm)2213x1530x1940
Weight (kg)1200
