Transfluid t form UMR Roll Forming Machines

t form - Type UMR rollforming machines

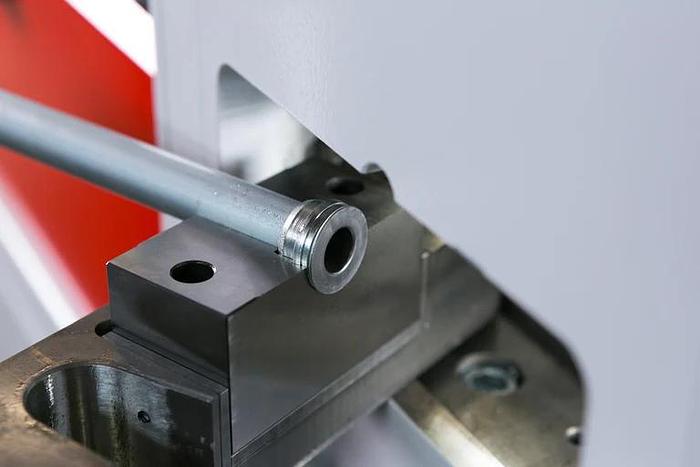

produces perfect and mirror-like sealing surfaces

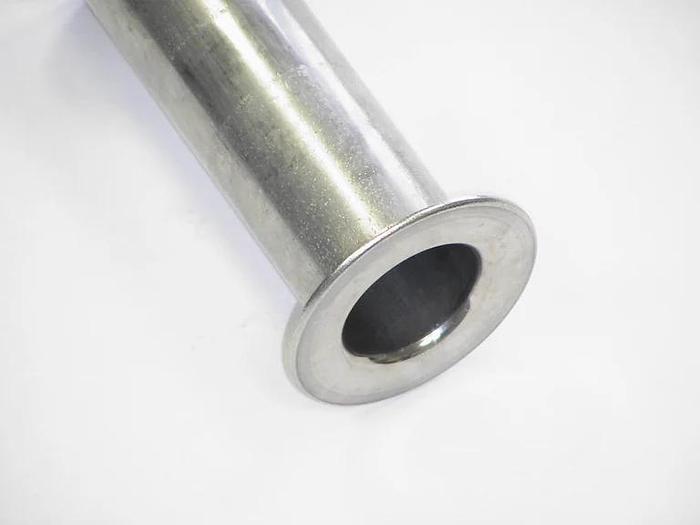

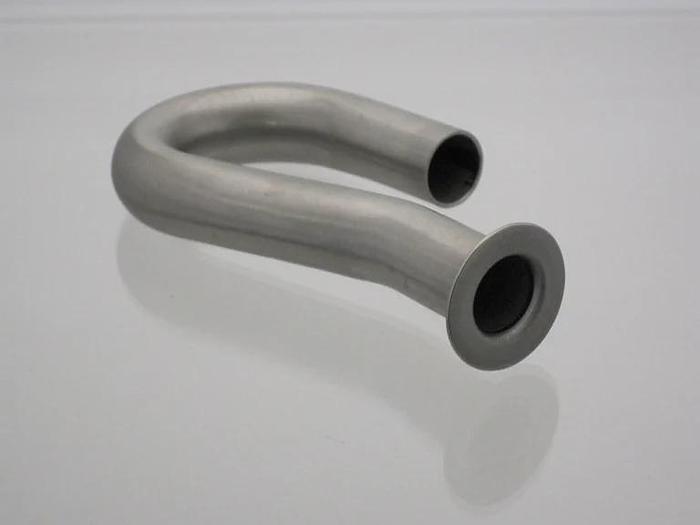

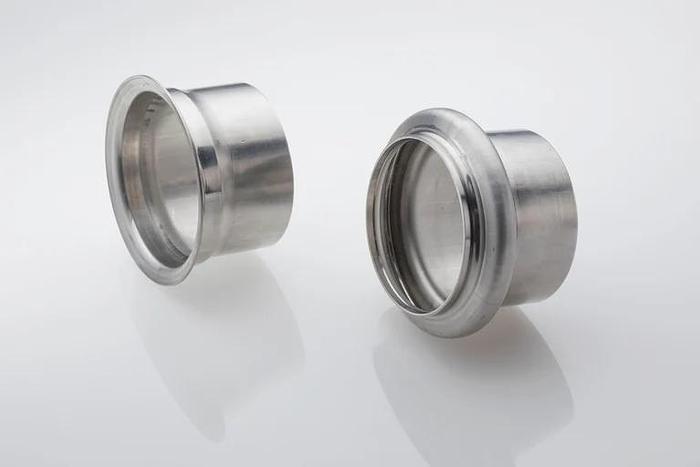

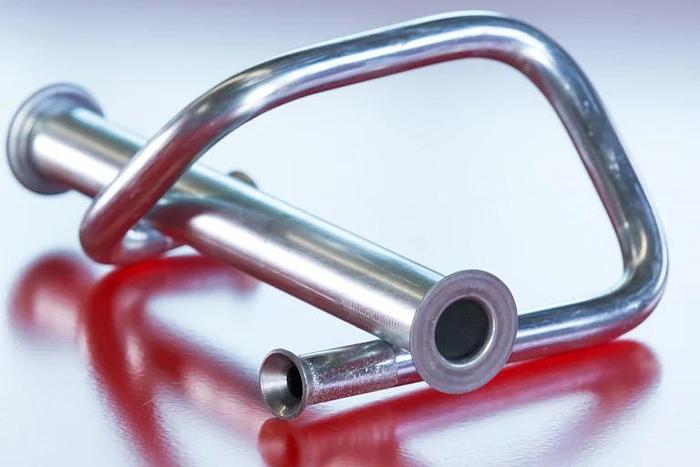

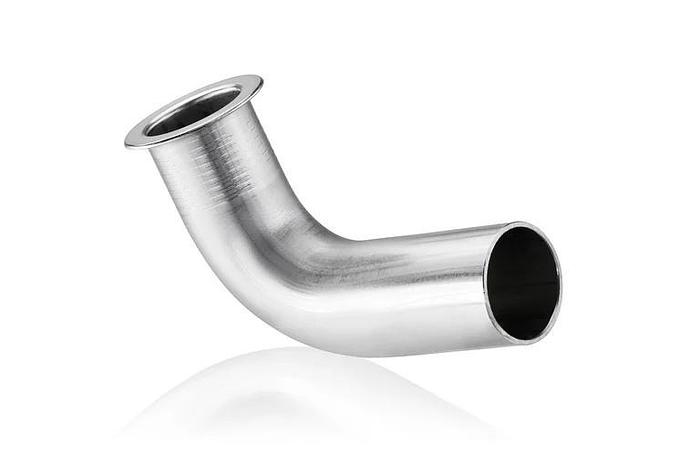

-For the production of 37°, 45°, 90° and ORFS flanging -Extremely short clamping lengths (from 1xD) -Simple, fast and easily accessible tool change -Feeding of ORFS o-rings -Easy visualization via touch panel transfluid® t form UMR ROLLFORMING MACHINES

Powerful and fast forming.

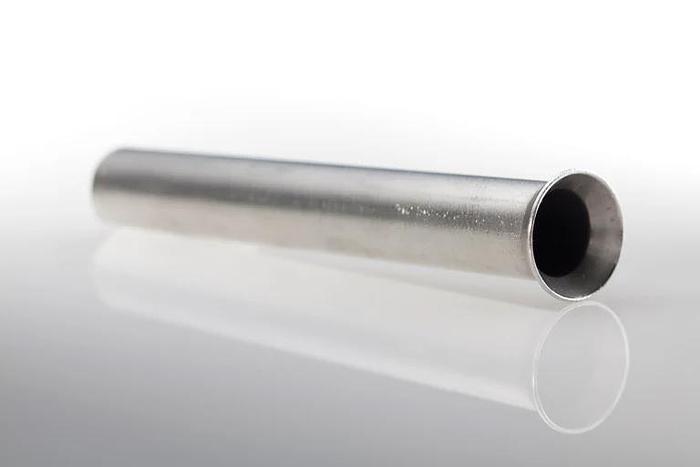

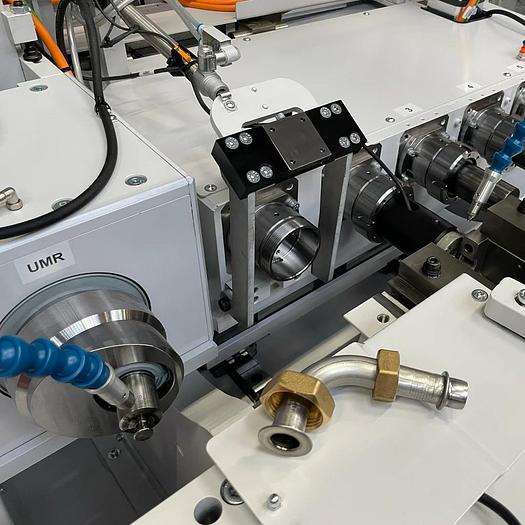

The type UMR tube forming machines use smart operating technology with many predefined settings that can be retrieved automatically to achieve perfect mirror-like surfaces. When producing flares with 20°-90° angles, with a clamping length of 1 x D, the machine achieves perfect sealing surfaces. Flaring up to 90° can be produced in a single cycle. Tools can be changed extremely quickly. With the appropriate tools, the machine can also close tube ends.

INCORRECT PARTS IMPOSSIBLE!

ORFS CONNECTIONS MANUFACTURED SEMI-AUTOMATICALLY

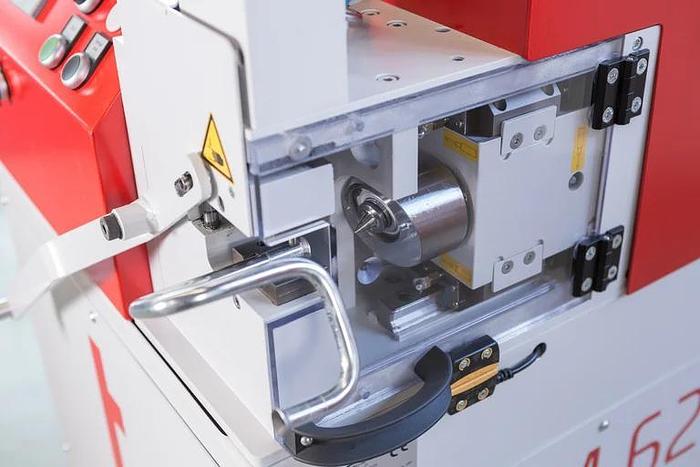

With the semi-automatic ORFS ring feeder, transfluid has developed a cost-effective solution for the safe and effective production of small, medium and even large batch sizes.

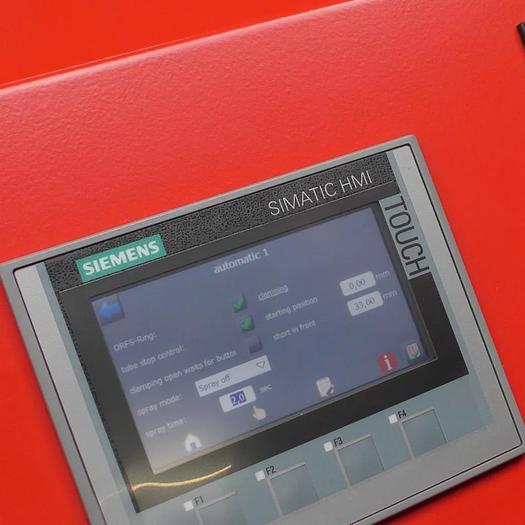

PREPARED FOR INTEGRATION INTO PRODUCTION CELLS This series will win you over with its special stability and performance. Individual pieces and small series can be produced in an extremely economical manner with this machine concept. The use of high-value components ensures the machine‘s durability. EASY CONTROL VIA TOUCH PANEL Setting of all parameters centrally in the machine control system, controlled positioning of the forming axis and the stop position. The UMR is equipped with a completely electronic preselection of the flanging geometry. The stop position and all strokes and machining operations are servo-electrically controlled and can be called up via a touch panel. Decisive for the exact machining time is which material is used and which shaping is to be implemented. The machine carries out the processing quasi automatically if it is possible to call up the tube size with the necessary process parameters. In individual cases, the clamping lengths for machining are 1 to 1.5 x the pipe diameter. Our new generation of t form UMR 628, 642 and 2090 machines reduces the set-up time when changing the tools and the operator can set up the machine in less than three minutes.
