Transfluid t cut Type RTO Chipless Orbital Cutting Machines

t cut - chipless orbital cutting machines

Cost-effective and clean!

Perfect cuts with the greatest precision Method-dependent saving of material Chipless and groove-free cuts High processing speed, with up to 2,000 cuts/hour transfluid® t cut TYPE RTO

Created for precision.

There are many good reasons to separate tubes chiplessly. And first of all, of course, the cleanliness. Precision and output, too, are not insignificant. Our chipless orbital cutting machines make precise cutting results possible. Your tubes can be formed immediately afterwards. That saves time and money. Technical Specifications: Separation efficiency: max. Ø 30 x 3 for stainless steel tubes Shortest separation length: - 25 mm (without pull apart) - 55 mm (with pull apart) Remaining length: 110 mm Separation efficiency: up to 2,000 pcs per hour T CUT - KEEPS THE WORKFLOW RUNNING

No downtime due to loading from the coil. When tubes from coil are used, there is no alternative to the chipless cutting because the tubes must be straightened. This straightening process and the transportation of the tube serve as a length positioning in the cutting machine. PREPARED FOR INTEGRATION INTO PRODUCTION CELLS

Whether as a stand-alone machine or as production cell, the t cut machines are above the rest thanks to the easy operation and accurate results! T CUT - SPECIAL CUTTING SOFTWARE

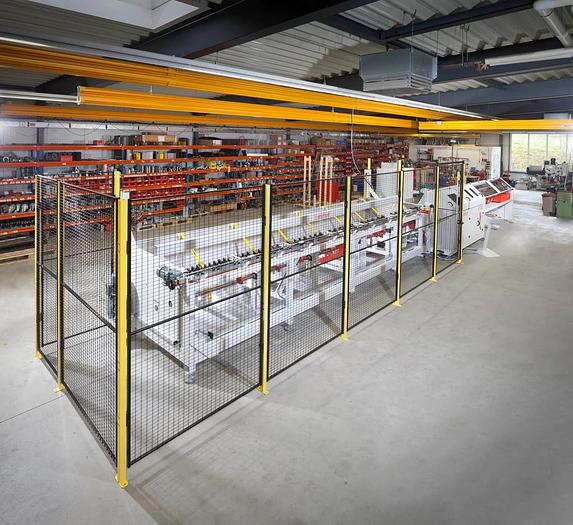

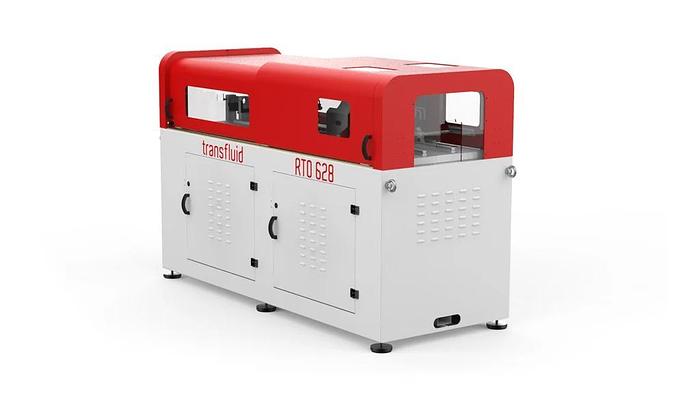

Our software ensures that our tube cutting machines operate with almost no scrap generation. That does pay off and increases your return on investment. It is possible to use automated nesting with these machines. This means that when the machine is fed enough length and number of pieces, the tubes are cut with the minimum amount of waste. The smart controls can be connected to the network and secure your long-term investment in the digitalization of your manufacturing. The continuous process monitoring gives you great accuracy and confidence in your production. RTO 628 with Conveyor feeder Pipes with a length of 6 meters are fed to the cutting machine via a step conveyor. After the cutting process, the different lengths can be sorted into different containers.

MODULAR DESIGN

The systems for chipless tube cutting can be individually equipped with a bar feeder for manual loading or for the separation from coil fit with a straightening unit.

CHIPLESS CUTTING

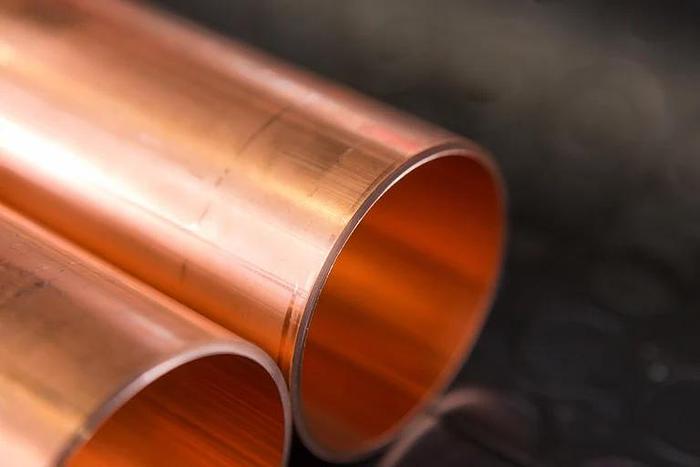

The chipless cutting ensures that no dirt appears in the tube and the production. Throughout the separation process the tube remains to some degree closed inside and is then pulled apart. It will also prevent the dirt from entering the tube during the separation process.

DIFFERENT TUBE LOADING CONCEPTS:

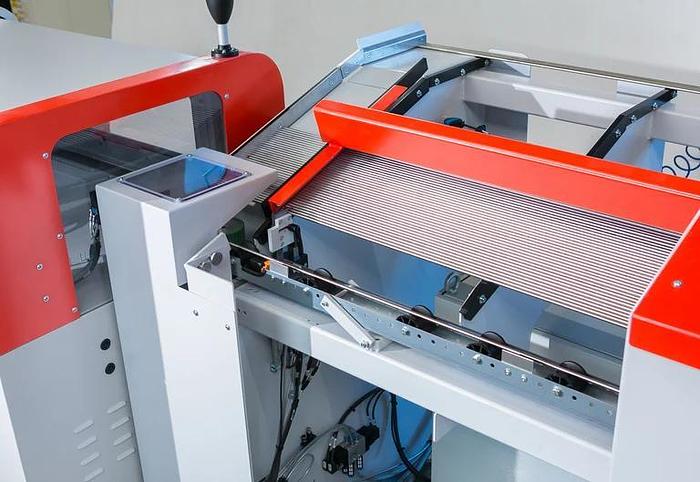

The transfluid t cut machines also have very efficient peripherals, which make it possible to process, for example, small numbers with a loading table or as bundles with automatic feeding and separation.

FLEXIBLE RELEASE:

The sorting of the tubes that have been cut can be done with different removal devices: they are grouped and removed at four or eight positions. If necessary, each individual tube can be labelled, to make sure that the tube is identified correctly at each stage of the process ahead.

SMART CUTTING

Our special software ensure that the cutting machine works with almost no scrap generation.

FAST CHANGE OFF SET-UP

Quick and easy tool change of the cutting tools in under 10 minutes.

Our solutions are ready to use and offer processes without interruptions. Simple set-up procedures allow a fast change of tube diameter and a sustainable production. That saves time twice.

THE PULL AND TEAR METHOD

Since the tubes can be pulled under tension during the cutting process, it is ensured that they are not constricted or deformed in the separation point.

THE BLADE CUTTING METHOD

This special tube cutting machine delivers sharp edges and square cut sections with long-lasting rotating blades.

T CUT - KEEPS THE WORKFLOW RUNNING

No downtime due to loading from the coil.

When tubes from coil are used, there is no alternative to the chipless cutting because the tubes must be straightened. This straightening process and the transportation of the tube serve as a length positioning in the cutting machine.

T CUT - SPECIAL CUTTING SOFTWARE

Our software ensures that our tube cutting machines operate with almost no scrap generation. That does pay off and increases your return on investment.

It is possible to use automated nesting with these machines. This means that when the machine is fed enough length and number of pieces, the tubes are cut with the minimum amount of waste.

The smart controls can be connected to the network and secure your long-term investment in the digitalization of your manufacturing. The continuous process monitoring gives you great accuracy and confidence in your production.
