Lissmac SMD 3 S - Edition

THE UNIVERSAL GRINDING AND DEBURRING MACHINE FOR THIN SHEET METAL IMPRESSES WITH HIGH QUALITY RESULTS IN EDGE ROUNDING AND SURFACE GRINDING.

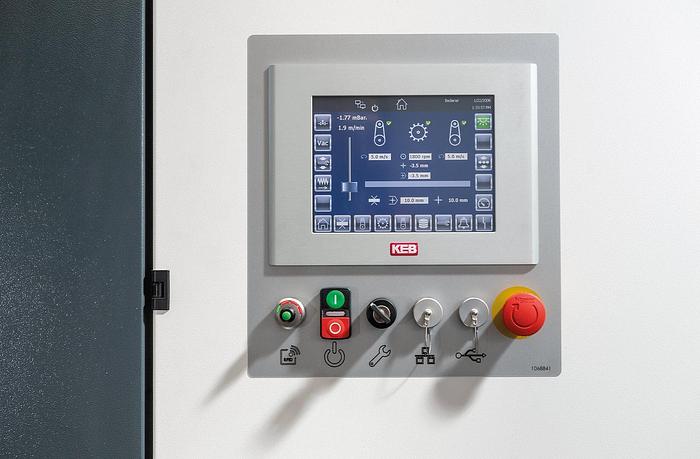

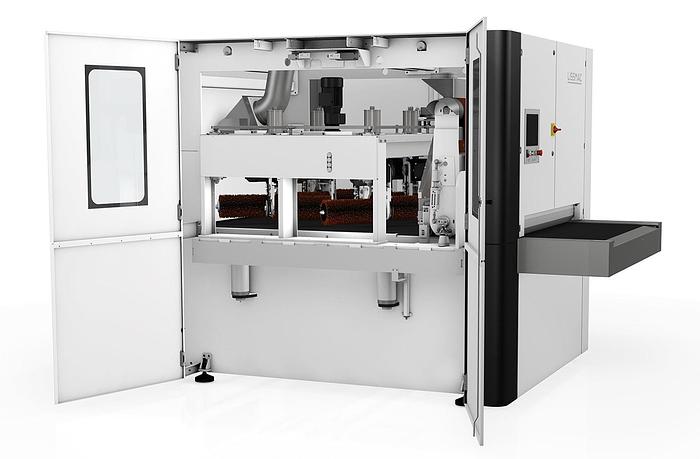

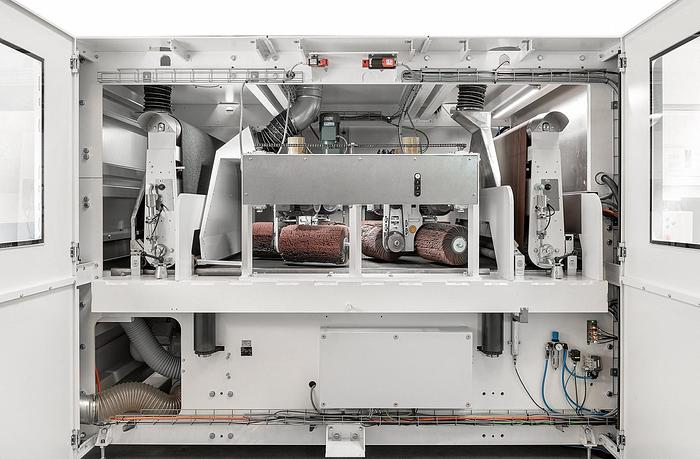

The LISSMAC - SMD 3 series grinding and deburring machines can be used for a wide variety of customer requirements. The SMD 3 S-Edition is ideal for processing laser and punched parts and also for deburring small thin sheet metal parts. Thanks to several round brushes, even edge rounding and directionless finishing are possible. The S-Edition gives impressive results on the edge and surface sanding. The dry grinding and deburring machines can be used to remove excess burrs and the oxide layer on one side, as well as producing a good surface finish and edge rounding up to a radius of 2 mm. Stainless steel, steel, aluminum and non-ferrous parts can be processed. Edges can be rounded over the entire working width of the machine. In addition, the grinding and deburring machines score with an easy to use high-end control panel, a constant table height for ergonomic work and the possibility of automation and integration into production lines. Thanks to the space-saving design, the grinding and deburring machines require 30% less installation space. Suitable for processing various materials including steel, stainless steel and aluminium Simultaneous processing of different material thicknesses is possible (E-units) Individually adjustable processing parameters for optimum results The thought-out design of the rotary heads ensure an even processing result over the whole working width. Maximum tool contact with the workpieces for perfect edge rounding up to 2 mm radius Efficient processing of small parts (down to 50x50 mm), whatever the geometry of the pieces Stationary machine table - Constant table height for ergonomic work Intuitive operation thanks to clear touch panel Flexibility and energy-efficient work because the processing units can be switched on and off separately Fast machine setting by automatic positioning of the tool axes Program memory takes care of automatic machine settings and reproducible processing results Fast tool-changing system keeps set-up times to a minimum Wide range of tools for maximum flexibility Optimal machine accessibility facilitates cleaning and maintenance Window in the machine doors allows to monitor the process Appropriate options and features for individual customer requiremen Possibility of automation & integration in production lines
