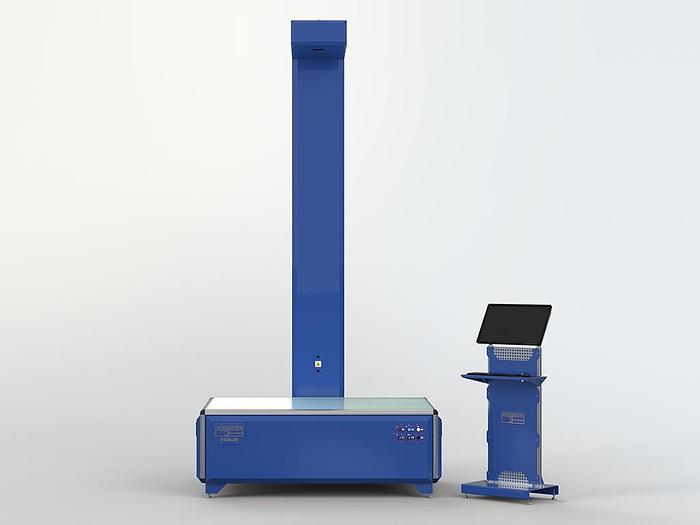

Planar P220.35
Inspect Parts Quickly and Automatically
Ultra Fast Reverse Engineering
SPC Integration
Largest Range of Models Available
3D Scanning Add On
Accuracy:
Shape: 35/70μm*
Surfscan: 0.25mm
Component Size
(length x depth x height)
1830mm x 1220mm x 350mm
Specifications
| Manufacturer | Inspecvision |
| Model | Combo |
| Condition | New |
| Max component length | 1830mm |
| Max component width | 1220mm |
| Max component thickness | 350mm |
| Max component weight | 400kg |
| Measuring accuracy, length & width** | +/- 35/70 μm* |
| Measuring accuracy, height** (optional) | +/- 100 μm* |
| Measuring speed** | <0.25sec |
| Camera | Industrialised ultra high resolution professionally mounted in sealed enclosure |
| Dot laser height measuring device (optional) | Class III R precision laser |
| Computer processor | Intel Quad Core |
| Processor speed | <3GHz |
| Hard disk | <125Gb |
| Screen | 20 inch flat screen or better |
| Peripheral equipment | Keyboard and optical mouse |
| Operating software windows | 10 - 64 Bit |
| Proprietary inspecvision software | Inspection, SPC, Reporting, Reverse engineering |
| Data cable | USB 2 or USB3 |
| Light table construction | Frame with removable sheet metal cladding |
| Light source | High efficiency LEDs |
| Mast construction | Heavy folded sheet metal construction |
| Power supply | 230 Volt, single phase, 50Hz or 110 Volt, single phase, 60Hz on request |
| Power consumption | 13 Amp maximum at 230 Volt, 20 Amp max at 110 Volt |
| Protective devices | Circuit breakers, mounted at rear of light table |
| Control panel | Control switches for power, camera and lights. Main power indicator |
| Ec directives | Compliant with Machinery, Low voltage and EMC Directives |
| Paint colour (powder paint) | RAL 5013 (cobalt blue) |
| Ambient operating conditions | 10-30 degree C |
| Approx footprint/installed width/ depth/ height/weight of installed | Computer Cabinet (inc keyboard tray) Optional 710mm (W) x 472mm (D) x 1739 (H) <95kgs |
| Standard packing | Export crates suitable for sea shipping (2 nos) |
| Warranty | One year limited warranty on hardware and software |
| Optional extended warranty | Two or three year extended warranty (requires software upgrade option) |
| Software support option | Annual support contract provides free software upgrades |
