Inspecvision Combo Opti-Scan 1000.35
Inspecvision Combo Opti-Scan 1000.35
orCall 508-277-9598
Description
Opti-Scan OS1000.35
Measures surfaces and edges in 3D
Single click automated inspection
White light scanning technology
Certified accuracy
20MP camera as standard
Designed for factory floor conditions
Retrofit and use with Planar 2D
Accuracy:
Repeatability: 35 μm
Volumetric: 75 μm
Resolution
Field of View: 1000mm
Camera: >20MP
Projector: >2MP
Specifications

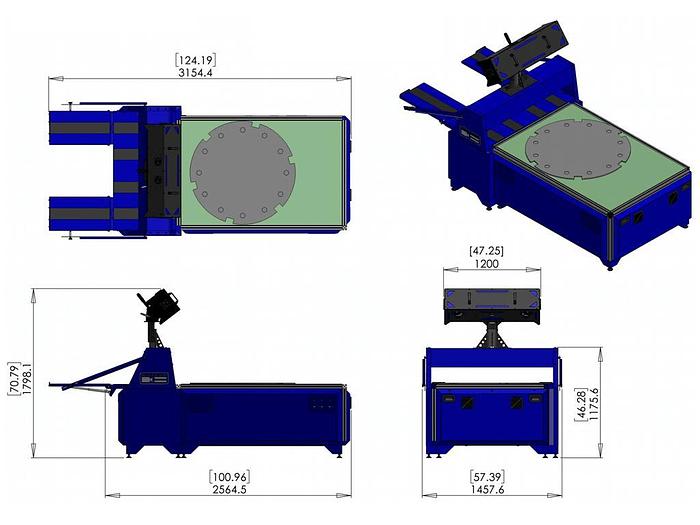

| Manufacturer | Inspecvision |
| Model | Combo |
| Condition | New |
| Max single scan area | 1000mm (X) x 625mm (Y) |
| Max single scan depth | 625mm (Z) |
| Volumetric accuracy** | 75 microns |
| Repeatability** | 35 microns |
| Point spacing | Better than 210 microns |
| Scanning speed*** | > 250,000 points per second |
| Scanning time*** | < 10 seconds |
| Processing time**** | < 5 seconds |
| Peripheral equipment | USB lighting controller, Standard Computer Interface |
| Required operating system | Windows 10 |
| Software included | 3D scanning, automated repositioning, texture map acquisition, 3D color rendering, creation of cross-sections, creation of 3D edges, reverse engineering of 3D edges to DXF/DWG, comparison of 3D edges to DXF/DWG, reverse projection of colored deviation reports onto part, creation of 3D point clouds in PLY, STL, VRML, ASCII formats, creation of texture mapped point clouds, calibration software. |
| Free 3d inspection software | Fully compatible with off the shelf free 3D inspection software. Functionality includes comparison to 3D solid models, dimensioning, GD&T, cross-sections, full surface deviation inspection, merging of scans, customizable reports, automatic alignment of scan to CAD, point cloud meshing, processing and filtering, extraction of nominal data from CAD model, comparison of 2 scans. |
| Advanced 3d inspection software option (geomagic control) | Available on request. Comparison to 3D solid models, GD&T, SPC, cross-sections, full surface and edge inspection, creation of report templates, automated merging of point clouds, automatic alignment of scan to CAD, automatic point cloud processing and filtering, automatic detection or repositioning spheres, macro creation for full automation, automatic extraction of nominal data from CAD model, comparison of 2 scans. |
| Accuracy verification object | Included as standard, calibrated ball bar |
| Optiscan construction | Camera and projector assemblies mounted on floating carbon fibre chassis |
| Camera | > 18 megapixels |
| Projection source | LED/laser projector |
| Data cables | HDMI and USB3 |
| Power supply | 10-240V 50/60Hz |
| Power consumption | 1.5 Amp maximum at 230 Volt, 3 Amp max at 110 Volt |
| Ec directives | Compliant with Machinery, Low voltage and EMC Directives |
| Paint color (powder paint) | Light table RAL 5013 (colbalt blue) |
| Ambient operating conditions | 5-35 degree C |
| Approx footprint width/ depth/ height/ weight | 1214mm (W) x 852mm (D) x 1490mm (H) < 25kgs (Tripod) |
| Standard packing | Export crate suitable for sea shipping |
| Warranty | One year limited warranty on hardware and software |
| Optional extended warranty | Two or three year extended warranty (requires software upgrade option) |
| Software support option | Annual support contract provides free software upgrades |
