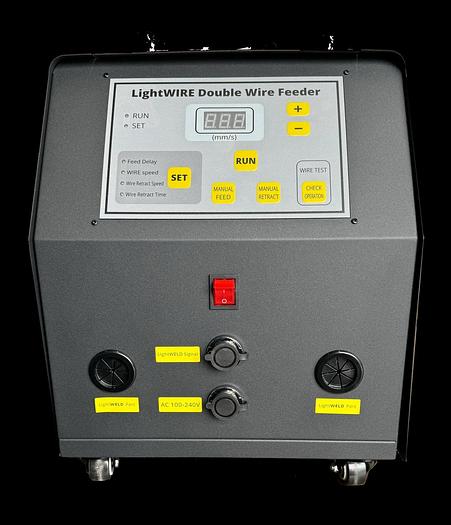

Serra Laser/IPG LightWELD Double Wire Feeder Kit

Serra LightWIRE- Double Wire Feeder Kit for LightWELD Dual wire feed clip allows simultaneous feeding of two wires into the weld pool. Parallel feeding of the wires at the nozzle tip with the laser centered between enables the wobble feature to simultaneous weld both wires during feeding. Compatible with wire diameters up to 0.060” (1.5mm), dual wire feed expands the capabilities of LightWELD to address parts with poor part fit up. Where weld certifications require larger fillet widths or radius, dual wirefeed efficiently adds material without the need to make overlapping welds, maintaining worker productivity and reducing overall heat input into the workpiece. IPG Power Trim allows fine tuning to make dual wire feeding easier to set up and do. Features of Dual Wire Feed Combiner Clip: • Wire diameter up to 0.060” • Twin Groove Weld Tip • Increase fillet dimensions • Increase tolerance for poor part fit up – fills gaps easily • Faster material build up
