Auto-Sert AS

The Auto-Sert Insertion Press has been helping customers meet their demanding production deadlines for years. Auto-Sert utilizes the latest in technology and is CE, ETL & CSA Certified. Developed by our team of talented designers and engineers, this insertion press just doesn’t quit! Whatever Auto-Sert model you decide on, you won’t be disappointed.

AS-7.5 & AS-10

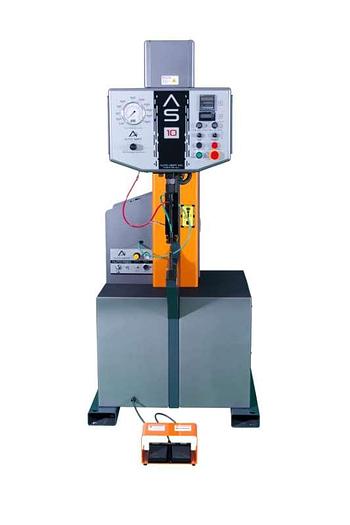

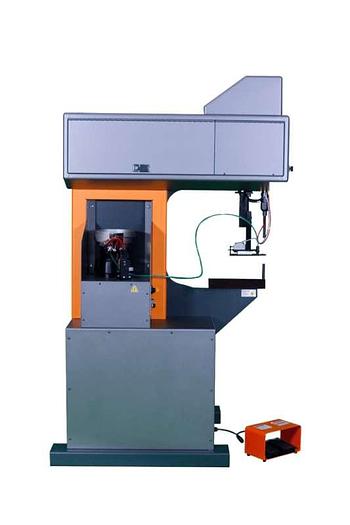

HYDRAULIC INSERTION PRESS The Auto-Sert 20″ Hydraulic Insertion Press is a high-powered, versatile machine, which provides the flexibility to work with both flat and formed parts of varying sizes. The control panel is located on the front face at eye-level for quick and easy adjustment during operation, and tooling part storage is conveniently placed within the machine itself, eliminating the need for extra shelf and storage space within the shop. Available in 7.5- and 10-ton capacity.

INSERTION PRESS FEATURES & BENEFITS Rigid Construction: 2” thick steel center mainframe. 20” and 36” Throat Depth Options: Design allows less restriction of movement around ram. Quick Change Tooling: Minimal tools needed for tooling change. Uniform Hydraulic Pressure by Design: No variation in pressure from heat build-up. Hardware is installed uniformly in thin, soft aluminum parts at low-pressure range to install large studs in stainless steel, the Auto-Sert press has capacity – with power to spare. Reliable Safety System: Redundant safety system internally monitored by a micro-controller. Very sensitive pressure sensing device used, plus ¼” window of safety before full tonnage is applied by press in manual operation. Operator can work faster with confidence. TOUCHSCREEN FEATURES & BENEFITS Durable HMI control components allows you to set up all machine functions with a touch. Digital Display gives live reading of hydraulic and installation pressure. State of the art electronics allows operator instant, live visibility to hydraulic and installation pressure and a graph to keep track of all installs. HMI with a digital display eliminates key switches and push button. Machine verifies installation pressure transmitted to a graph (great where specific pressure requirements are needed (automotive, etc.). New, improved hydraulic system. Servo hydraulics allows the machine to get down to minimal installation force (excellent for installing broaching fasteners into printed circuit boards). The AST is equipped with a proven, reliable Safety System internally monitored by a micro-controller and a 9” Touchscreen. This screen is packed with advanced features including batch/part count, digital pressure, read-out, graphs, controls, recipe menu that saves over 100 files, lockout for screen, and easy operations indicator. BENEFITS Touch Screen Easy to read touch screen. Easy access to all machine functions. Ability to lock out set-up screen. Easy use of counters; parts, batch & batch actual. Displays live machine stats. Meters – Displaying hours, cycles, for ease of use & maintenance. Digital menu options to store & edit programs | job numbers. Hydraulics State of the art hydraulic system. Ability to minimize insertion pressure for installing hardware into plastic and circuit boards. Live hydraulic pressure reading. Fine hydraulic pressure adjustment. Easy dwell time adjustment. New hydraulic design – fewer fittings, hoses & tubing. Electrical New electrical design | electronics for the control panel Auto-Feed Newly designed pneumatics & electronics
