NS ML75
NS ML75
orCall 508-277-9598
Description
Max Ø 76mm
Straight and curved tubes
1 station

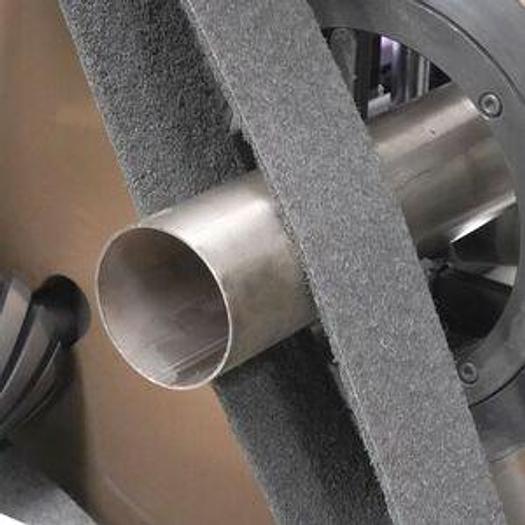

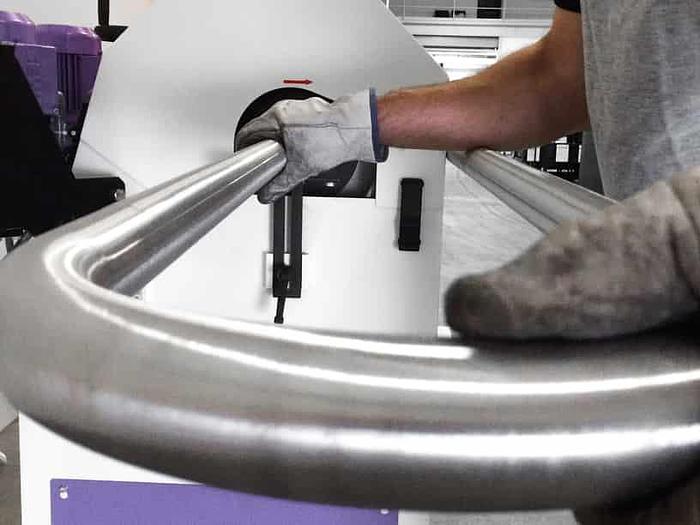

Ideal for polishing curved round tubes with tight radii and diameters up to 76mm.
The ML75 is the ideal machine for polishing round tubes with diameters up to 76mm and with tight bend radii.

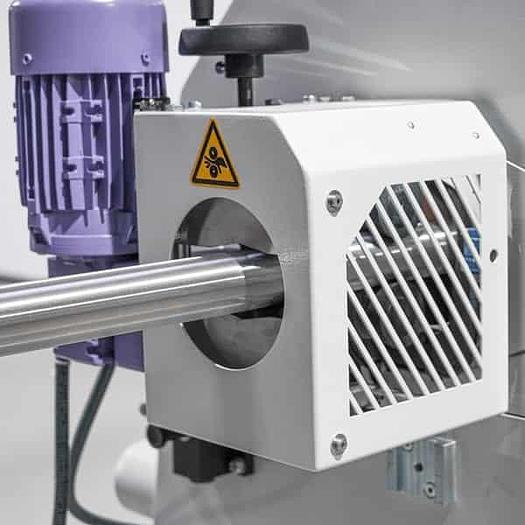

The ML75 has a slim and compact planetary wheel that enables the operation of curved tubes. This machine can be equipped with an automatic feeding system for straight tubes finishing.

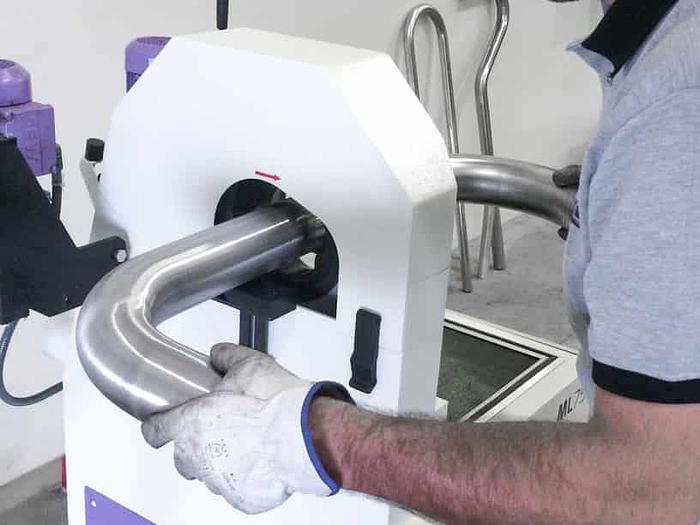

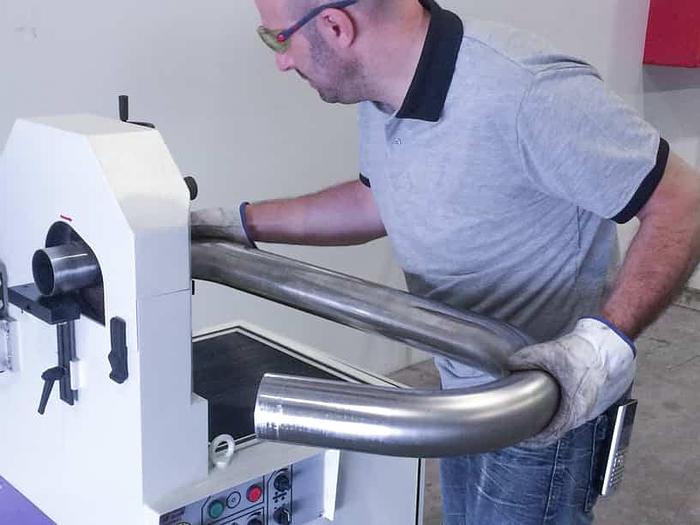

This new tube finishing machine is the solution for curved tubes that are too tight to fit the ML100 and with a diameter too large to fit the ML50.
Specifications
| Manufacturer | NS |
| Condition | New |
| Working capacity (Ø mm) | 10-76 |
| No. Stations | 1 |
| Abrasive belt dimensions (mm) | (2x) 25x860 |
| Abrasive belt speed (m/s) | 10-25 |
| Feeding speed (m/m) | 1-5 |
| Abrasive belts motor (kW) | 2.2 |
| Wheel motor (kW) | 1.5 |
| Feeding motor (kW) | (2x) 0.12 |
| Total power (kW) | 4 |
| Consumption (A) | 13 |
| Dust extraction connection (Ømm) | 100 |
| Dimensions (mm) | 750x1000x1300 |
| Weight (kg) | 230 |
