NS ML150
NS ML150
orCall 508-277-9598
Description
Max Ø 150mm
Straight and curved tubes
1 station
Straight and curved round tube finishing up to Ø150mm with maximum flexibility and consistency.

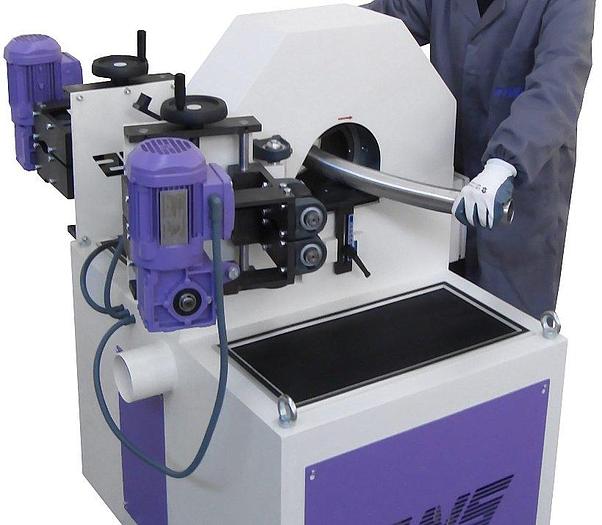

ML150 round tube finishing machine finishes and polishes round, oval and elliptical tubes, straight or curved, up to Ø150mm.
The ML planetary system enables the work without rotating the tube, delivering the best results on bent and curved tubes as well.
The auto feeding system transports straight tubes safely and automatically through the finishing station, enabling a consistent and high productive finishing quality.
Specifications
| Manufacturer | NS |
| Condition | New |
| Working capacity (Ø mm) | 20-150 |
| No. Stations | 1 |
| Abrasive belt dimensions (mm) | (2x) 50x1100 |
| Abrasive belt speed (m/s) | 10-25 |
| Abrasive belts motor (kW) | 5.5 |
| Wheel motor (kW) | 2.2 |
| Total power (kW) | 8 |
| Consumption (A) | 18 |
| Feeding Motor (kw) | (2x) 0.18 |
| Dimensions (mm) | 1100x950x1350 |
| Weight (kg) | 480 |
| Dust extraction connection (Ømm) | 100 |
