NS ML200
NS ML200
orCall 508-277-9598
Description
Max Ø 205mm
Straight and curved tubes
1 station
Straight and curved round tube finishing up to Ø205mm with maximum flexibility and consistency.

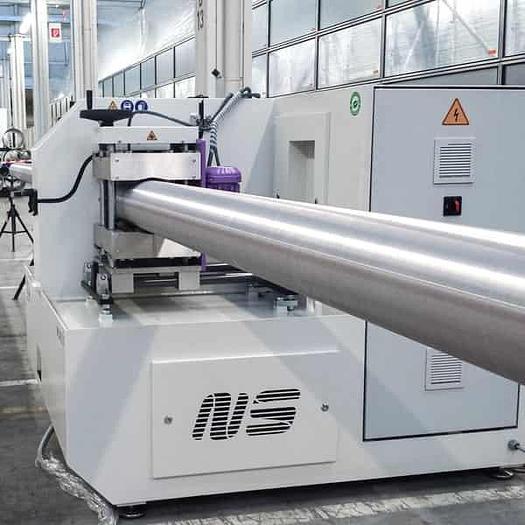

The ML200 round tube finishing machine finishes and polishes round, oval and elliptical tubes, straight or curved, up to 200mm.

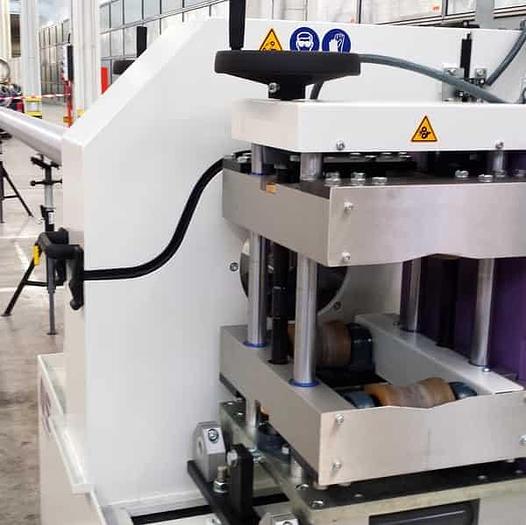

The ML planetary system allows the work to be performed without rotating the tube, delivering the best results on both bent and curved tubes.
The auto feeding system transports straight tubes safely and automatically through the finishing station, enabling a consistent and highly productive finishing quality.
Specifications
| Manufacturer | NS |
| Condition | New |
| Working capacity (Ø mm) | 20-150 |
| No. Stations | 1 |
| Abrasive belt dimensions (mm) | (2x) 70x1240 |
| Abrasive belt speed (m/s) | 10-25 |
| Abrasive belts motor (kW) | 7.5 |
| Wheel motor (kW) | 3 |
| Total power (kW) | 11 |
| Consumption (A) | 24 |
| Feeding Motor (kw) | (2x) 0.18 |
| Dimensions (mm) | 1150x950x1350 |
| Weight (kg) | 680 |
| Dust extraction connection (Ømm) | 100 |
| Feeding speed (m/m) | 1-4 |
