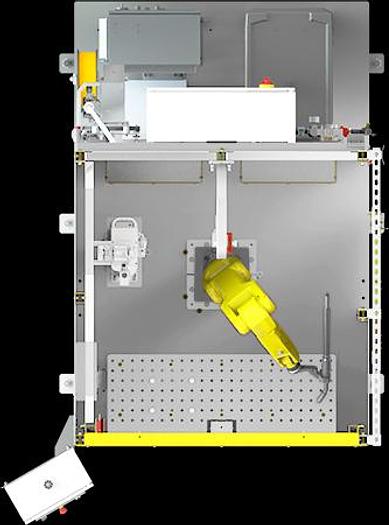

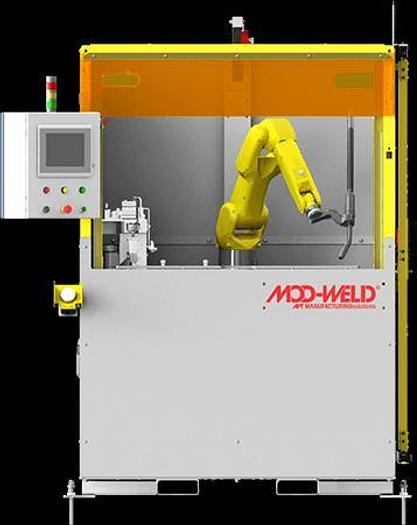

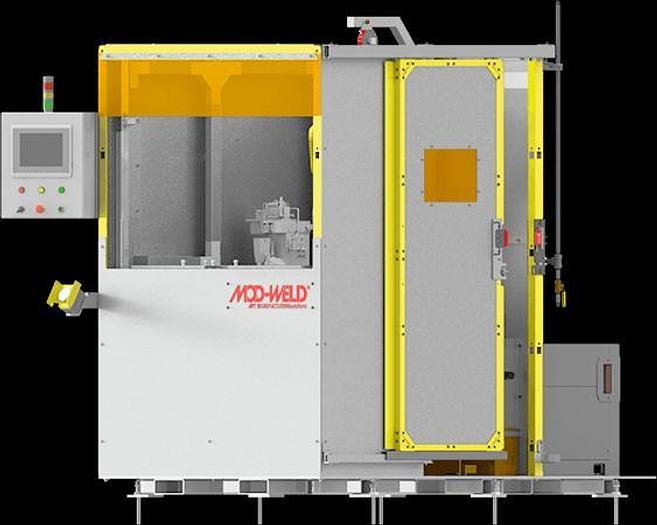

APT Mfg Solutions Mod-Weld ARC Mate Single Station Wide Table

The fixed table allows the operator to load the parts directly into their fixture as the robot waits in a safe position for the safety door to close before welding. - FANUC Robot / Rockwell Controls / Integrated by APT Manufacturing - Load/Unload directly into the weld cell - Locating holes for Fixtures to be removed and set back up in same location - Ease of set up - Easy maintenance and cleanliness - Side access door for entering in a safe environment - Small footprint - Recipe Management with room for up to 100 recipes - Base model is configured to weld steel (hard metal), soft metals require additional options Choose Your Power Supply

Fronius

400i TPSi, air-cooled torch for welding steel. Comes with .035 wire feed rollers 3PH Power. Optional consumable or replacement parts up to 1/16

400i-C TPSi, cooler & water cooled torch. Comes with .035 wire feed rollers 3PH Power. Optional consumable or replacement parts up to 1/16 400i-C-S/500i-C-S TPSi, cooler, water-cooled torch, push/pull CMT ready package for both steel (hard wire) & aluminum (soft wire) Equipped with 3/64 start-up consumables & drive wheels for aluminum welding. 3PH Power

Miller

350C/D Auto-Continuum™ 3PH or Auto-Deltaweld™ 1PH, air-cooled torch for welding steel. Comes with .035 wire feed rollers. Optional consumable or replacement parts up to 1/16

500C-C/500D-C Auto-Continuum™ or Auto-Deltaweld™, cooler & water-cooled torch Comes with .035 wire feed rollers. 3PH Power. Optional consumable or replacement parts up to 1/16

500C-C-S Auto-Continuum™ 500, cooler, water-cooled FANUC Servo Torch to pull the wire. Equipped with 3/64 start-up consumables & drive wheels for aluminum welding. 3PH Power

Software Options Fronius

PMC Fronius Pulse Multi-Control, regulated, low-spatter droplet detachment. At the same time, PMC generates a stable arc which results in perfect control of the weld pool. LSC Fronius Low Spatter Control, achieves high-quality weld seams with minimal spattering and increased deposition rate, as the LSC principle is based on the short circuit occurring at a low current level. This leads to soft reignition and a stable welding process. CMT Fronius Cold Metal Transfer (CMT) welding, only available in CMT ready machines. Ideal for high performance welding in the areas of thin materials, brazing, visual aesthetics, cladding & WAAM welding consisting of all ranges of materials from Aluminums, Steels, Coppers, Titanium, & Nickel alloys

FANUC

TPW FANUC Thick Plate Weld Package is Touch Sensing & Through Arc Seam Track in one package. This robot/cobot software is available on both Fronius & Miller
