NS ML300 + ML350
NS ML300 + ML350
orCall 508-277-9598
Description
Max Ø 356mm
Straight tubes
1 station

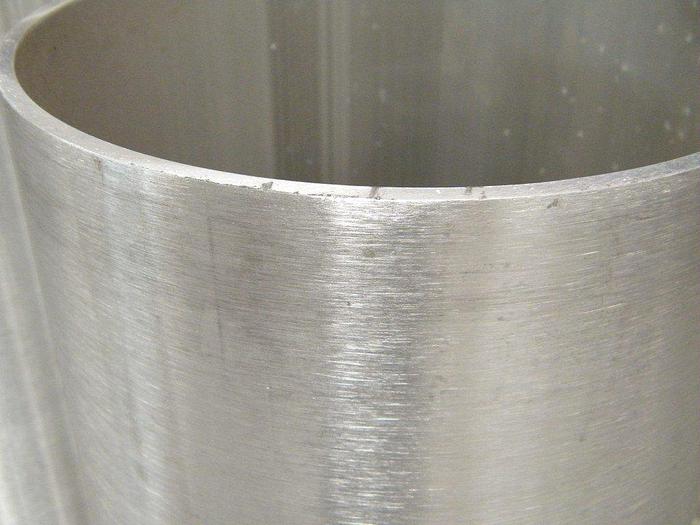

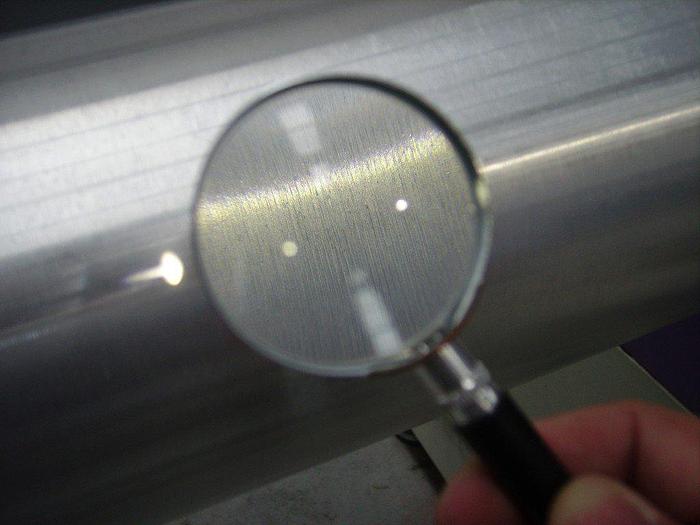

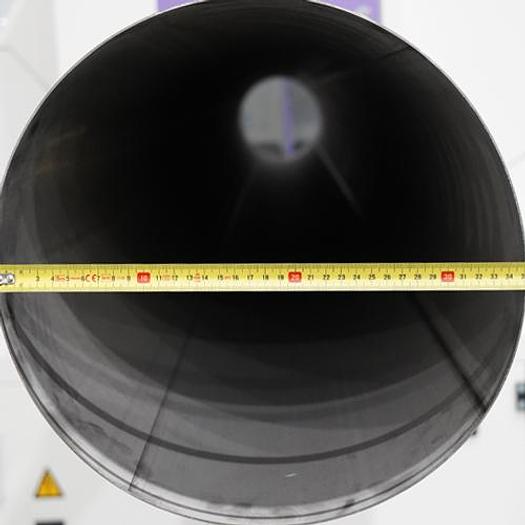

Quality and consistency in large tubes finishing up to Ø356mm.

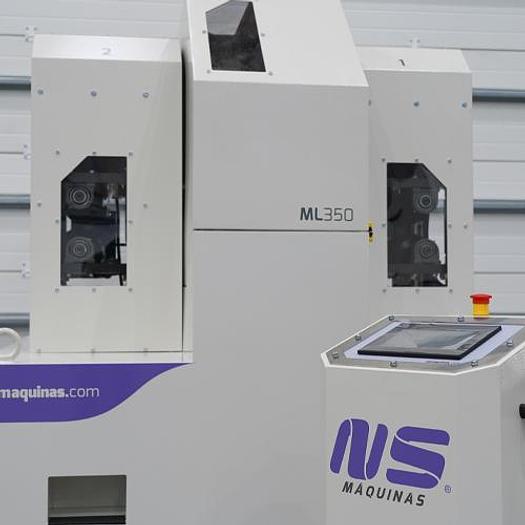

ML300 and ML350 are round tube finishing machines to finish and polish straight round, oval and elliptical tubes of high diameters.
The ML planetary system enables the work without rotating the tube, delivering the best finishing results.

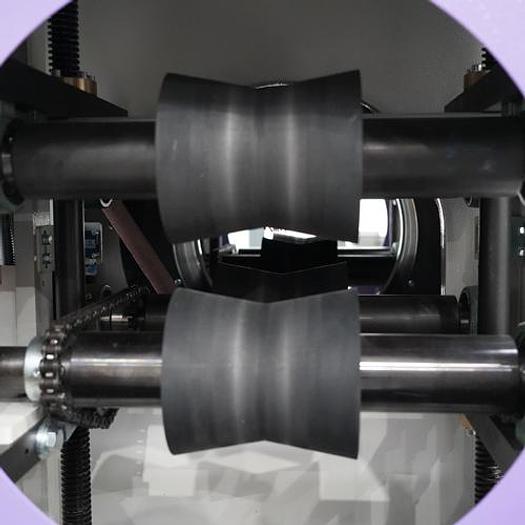

The auto feeding system transports straight tubes safely and automatically through the finishing station, enabling a consistent and high productive finishing quality with lowest vibration.
Specifications
| Manufacturer | NS |
| Condition | New |
| Working capacity (Ø mm) | 40-310, 60-356 |
| No. Stations | 1 |
| Abrasive belt dimensions (mm) | (2x) 120x2150, (2x) 120x2300 |
| Abrasive belt speed (m/s) | 10-25 |
| Abrasive belts motor (kW) | 11, 15 |
| Wheel motor (kW) | 4, 5.5 |
| Total power (kW) | 17, 23 |
| Consumption (A) | 35, 44 |
| Feeding Motor (kw) | (4x) 0.25, (4x) 0.37 |
| Dimensions (mm) | 1700x1610x1800, 1940x1715x1805mm |
| Weight (kg) | 1950, 2240 |
| Dust extraction connection (Ømm) | 200 |
| Feeding speed (m/m) | 0.6-3.0, 0.6-2.5 |
