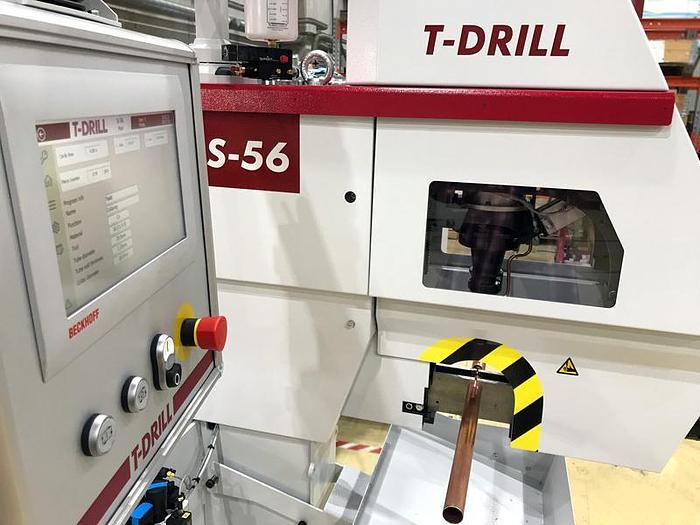

S-56 FBH (Flying Branching Head)

S-56 Collaring Machine for producing T-outlets on both straight and bent tubes The movable S-56 unit in FBH provides the best use of the floor space as tube stays still during the collaring process saving more than 50% of the floor space compared to S-56 with MFT & AFT feed tables where tube is moving and S-56 stays still. T-DRILL S-56 is a highly effective collaring machine for producing T-outlets for brazed and welded joints. The machine is designed for both straight and bent tubes. The S-56 produces quality collars up to 54 mm (O.D. 2 1/8”) with a round pilot hole and 60,3 mm (O.D. 2 1/4″) with an elliptical pilot hole. It is ideal for producing collars in steel tubes, but also suitable for all malleable materials (steel, stainless steel, aluminum, copper & copper-nickel). The T-DRILL S-56 collaring process is fully automated and the drilling & trimming processes are optimized. The specially designed S-56 collaring heads enables three types of process: Drilling/Collaring/Trimming – Used for butt weld method where branch tube is put on top of collar. Elliptical pilot hole – Used for butt weld method. An elliptical pilot hole is done beforehand with laser, plasma, milling or with punching machine. Enables 1:1 collaring. Drilling/Collaring – Used for lap joint method where branch tube is put inside of the collar. Being an Industry 4.0 ready machine utilizing the latest technology, the S-56 is very versatile and easily customized to fit specific customer needs. The machine is easy to program and use, featuring a user-friendly GUI Interface with a color touch panel, adjustable machining parameters, and fine-tuning of motion profiles. A wide range of feeding tables and automated systems are available for improved manifold production efficiency. S-56 can also be integrated into flexible manufacturing systems: S-56 Applications: STAINLESS PROCESS PIPES Process piping in stainless steel frequently results in a need for multiple outlets in a manifold. There is no better way to manufacture such a manifold than the T-DRILL process. By eliminating two welded joints, the system minimizes costs and increases profit while offering improved quality. The S-56 offers great advantages in the following industries: Food & Dairy industry Pharmaceutical industry Chemical industry Brewery industry Fire protection (sprinkler systems) HVAC INDUSTRY In the HVAC industry, T-DRILL machines are typically used in the manufacture of tubular components found in air conditioning/ refrigeration, heat pumps, heat recovery and heat exchanger manufacturing. The S-56 is well suited for these applications and many more – offering the most reliable tube joints of top quality. AUTOMOTIVE INDUSTRY T-DRILL’s reliable T-joining has a vital importance for automotive tube applications, because every vehicle is subject to severe vibrations. As T-DRILL’s extruded outlets are formed outside of the main run tube, it also minimizes the flow restrictions. The S-56 is ideal for efficient fabrication of the following: Engine a/c systems Fuel rail and high pressure diesel components Exhaust cross-over applications Vapor recovery systems Battery cooling for electric vehicles Key Features: Industry 4.0 ready machine: very versatile and easily customized to fit specific customer needs Designed for producing T-outlets for brazed and welded joints on both straight and bent tubes Enables three types of process: 1. Drilling/Collaring/Trimming, 2. Elliptical pilot hole and 3. Drilling/Collaring User-friendly GUI Interface with color touch panel Adjustable machining parameters & fine-tuning of motion profiles Accessories & options to improve manifold production efficiency Easier welding (Butt weld outlet vs nozzle weld) Suitable for all malleable materials (steel, stainless steel, aluminium, copper, copper-nickel) T-DRILL collaring machine S-56 is one of the machines in our mutual Showroom in Germany. Book an appointment to see the machine in action. Book an appointment COMPARISON: Welded Fittings vs T-DRILL Collaring & Flanging CHECK OUT ALSO OUR NEW GUIDE: CUT COSTS, IMPROVE EFFICIENCY, AND SAVE A MILLION PER YEAR WITH T-DRILL METHOD. READ MORE
