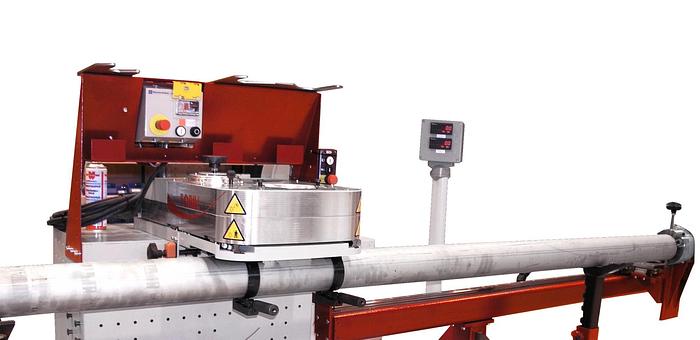

T-115 Collaring Machine

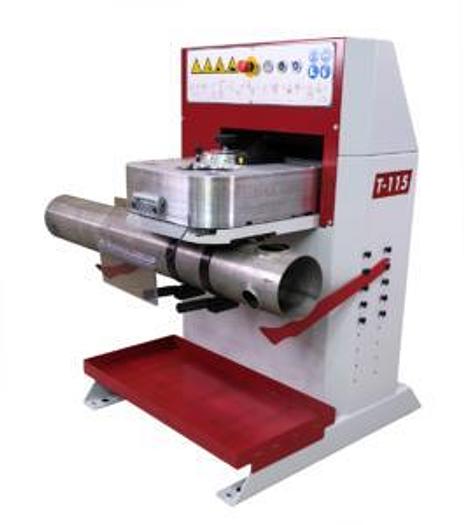

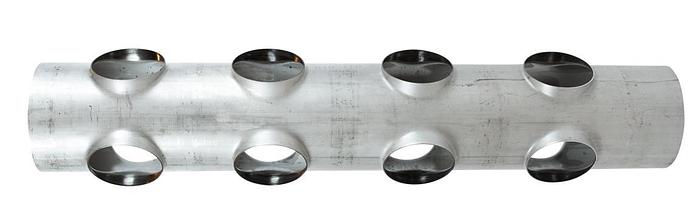

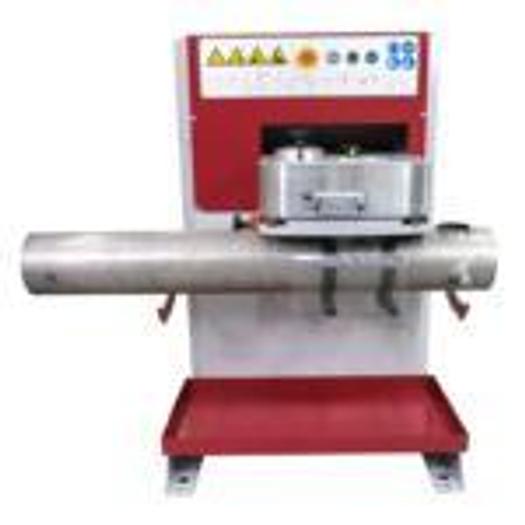

T-DRILL T-115 Transportable Collaring Machine The transportable T-115 Collaring Machine produces extruded outlets for branch connections directly on run tubes 33,7–323,9 mm (1’’–12’’) with branch tube diameter up to 114,3 mm (4’’). The entire process from pilot hole milling to trimming is carried out in three steps on a single workstation. The T-115 machine is effortless to operate: the tools are adjustable for different branch pipe sizes, and the operation panel provides simple step-by-step instructions for starting and stopping pilot hole milling, collaring and trimming cycles. The T-115 is only 800 mm (32’’) wide and designed for easy moving with a manual or motorized forklift. The delivery package includes also a convenient Tool Table with tool holders for easier machine usage and tool service. It is an ideal solution for both factory and on-site use for various industries, such as: – Stainless Steel Enterprises (e.g. pumps, valves, Food & Dairy, Water Treatment, Pharmaceutical & Chemical industries) – HVAC (e.g. heat exchangers, air pumps, radiators) – Shipbuilding (e.g. air handling, clean & waste water, ballast water, engine tubes) – Automotive & Aviation – Special Applications The T-115 collaring system consists of: T-115 collaring machine Pilot hole milling tool Collaring tools (with forming pins + pin holder according to collar diameters) Trimming tool Clamping tools according to run pipe diameters Tool Table with tool holders The pilot hole tool, collaring tools and trimming tool are stored on the Tool Table. The tool holders can be used for tool setting. The buttons of the operation panel are used for starting and stopping pilot hole milling, collaring and trimming cycles. Key Features • Adjustable tools for different branch pipe sizes • Precise collar quality • Easy step-by-step instructions • For both factory and on-site use • Only 800 mm wide (32’’) • Easy to move by manual- or motorized forklift T-115 Accessorizes T-115 Tube Measuring Table T-DRILL T-115 measuring table is used for controlled and precisely dimensioned transfers of pipes in the angle and axial directions. Using the measuring table it is possible to estimate accurately both the distance as well as the angle gap between two collars (or the start-off point and the collar). The measuring table is suitable for pipe sizes Ø33,7–323,9 mm. The maximum length of the pipe is 3000 or 6000 mm. THERE ARE TWO STANDARD LENGTHS AVAILABLE: For tube length 3000 mm and 6000 mm. Tube Measuring Table 3000 Manual Measuring system for run-tube For diameters Ø33,7–323,9 mm and lengths min. 3 x O.D. and max 3000 mm (When working with small diameters, please contact T-DRILL Sales to ensure the l min measurement) Positioning tolerances: length +/- 0.5 mm (machine); +/- 1.0 mm (tube) angle +/- 0.5º (machine); +/- 1.0º (tube) Longitudinal and angle position can be seen from digital read-out Tube Measuring Table 6000 Manual Measuring system for run-tube For diameters Ø33,7–323,9 mm and lengths min. 3 x O.D. and max 6000 mm (When working with small diameters, please contact T-DRILL Sales to ensure the l min measurement) Positioning tolerances: length +/- 0.5 mm (machine); +/- 1.0 mm (tube) angle +/- 0.5º (machine); +/- 1.0º (tube) Longitudinal and angle position can be seen from digital read-out
