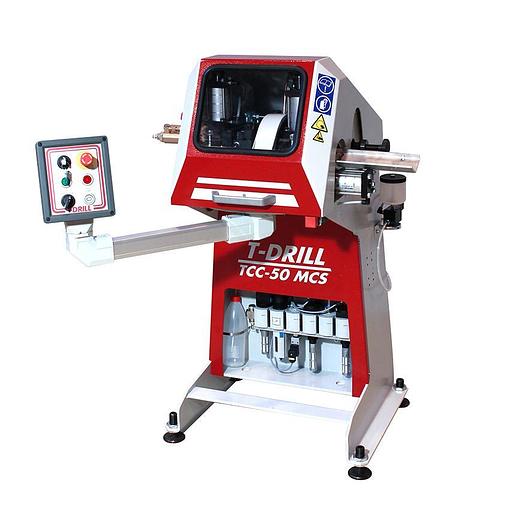

TCC-50 MCS Transportable Cutting Machine

TCC-50 MCS Transportable Manual Tube Cutting Machine The TCC-50-MCS provides a cost-effective solution for those needing the benefits of chipless rotary cut-off but with lower volume requirements. The tube is fed manually by the operator to the adjustable stopper followed by automatic rotary cut-off. With a digital read-out the cut-length setting can be made fast and accurately. The tube diameter range is 1,5–50,8 mm (0.06–2″). The machine is suitable for copper, aluminum, brass, CuNi, mild- and stainless steel. Rotary cut-off eliminates chips, scrap, secondary deburring and part washing. It is an ecologically friendly, quiet and fast cutting method. Minimal I.D. reduction is of vital importance for secondary operations such as mandrel bending and standalone end forming. With the TCC-50-MCS, this can be achieved by using a fast, two step cutting method. The Pull-apart method is the most advanced cut-off method: first the cutting disk penetrates the tube wall to approximately 95%. The cut-length is then separated by pulling it apart. This eliminates or minimizes I.D. reduction that might occur if the blade was to cut completely the tube wall. With this feature, the secondary operations are easier to carry out since the cutting quality is usually good enough for them without deburring or chamfering tube ends. The method also allows easy chaining of different processes such as cutting + endforming/bending. ADVANTAGES No chips, scrap, secondary deburring and part washing. Ecologically friendly, low-noise and fast Minimum I.D. reduction
