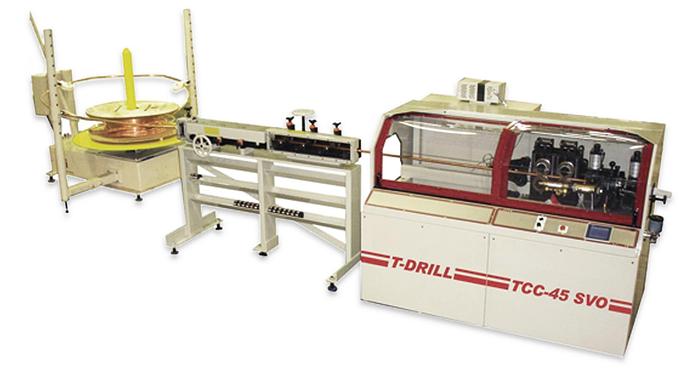

TCC-45 SVO Cutting Machine

TCC-45 SVO Automatic Rotary Cut-off machine with Servo Motor based feeding The TCC-45 SVO is an Automatic Rotary Tube Cut-off Machine for cutting of all malleable materials such as aluminum, copper, steel and stainless steel. The tube diameters are Ø1,5–Ø22 mm | Ø0.06” – 0.866’’. The servo-controlled roll feed system enables quick and easy cutting length changes using the touch screen. TCC-45 SVO was designed for applications with cut lengths exceeding 2 m (79’’). It provides a smoother and faster method of feeding longer tube, especially when compared with the standard hitch-feed method. The TCC-45 SVO is typically used for cutting tubes from coil. The TCC-45 SVO is an energy saving solution and thus an ecological alternative to machines in which tube feeding is powered using compressed air. After cutting, the cut tubes are transferred to a tube collection table that ensures straight run of tubing and allows even roll down to the collection point. ADVANTAGES OF T-DRILL CHIPLESS CUTTING No expensive saw blades needed Longer blade life No material loss between cuts No chips – no need for deburring system No investment in chip handling system Biological lubrication – no need to wash before brazing Fast cycle time – maximum ~ 3,000 pieces / hour Cuts always exactly 90° to the tube run Inline endforming available after cutting (1-8 hits) – replaces the investment in one additional production step Low operating noise level Waste minimizing and cut piece optimization systems Trusted: more than 500 TCC machine references globally
