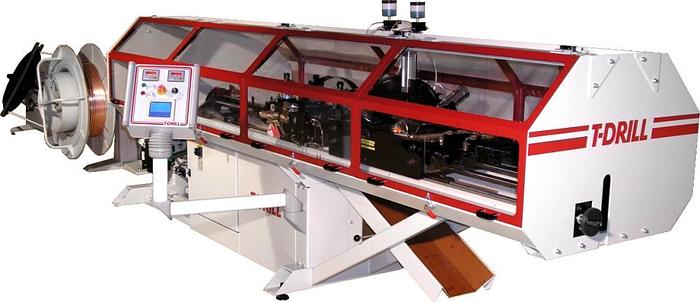

TCC-45 EF3 Cutting & End Forming Machine

TCC-45 EF3 Cutting Machine with In-line endforming The TCC-45 EF3 is a heavy duty chipless tube cutting station with integrated hydraulic endforming. The TCC-45 EF3 has been designed for automatic chipless rotary cutting, grooving and endforming. All three operations are made simultaneously, which eliminates tube handling from cut-off machine to stand alone endformer. This increases productivity and improves accuracy and quality. The system can be programmed for long, fully unmanned production batches. The machine is equipped with three forming stations capable of producing most standard forms with a single tooling set-up: beads, O-ring beads, flares, hose couplings, expansion, reduction, etc. The machine can process tubing from either straight lengths or from coil stock. It is equipped with a batch counter which turns the system off after the required number of cuts. Specifications: 1-3 endforming hits available Ram force 8 tons Ram stroke 40 mm (57”) Equipped with standard “Manchester” tooling
