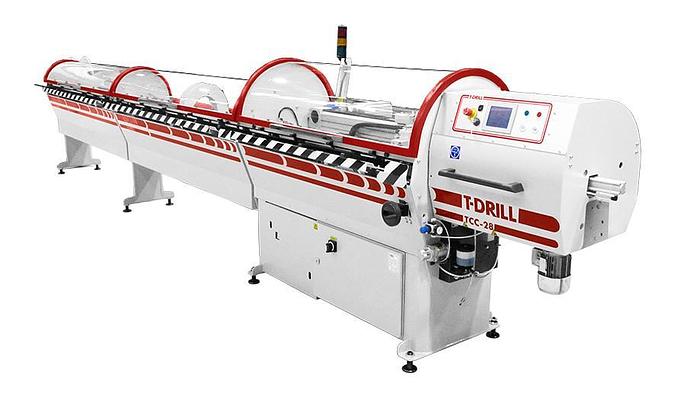

TCC-28 RL Cutting Machine

TCC-28-RL Automatic Tube Cutting Center for Straight Lenghts The TCC-28 is an automated tube cutting station with many options. Cutting diameter range for straight length tubes is O.D. Ø 4,76–28,6 mm | 0.187” – 1.125”. The system features fully automatic cut length changes with an integrated batch management system. Cutting of straight tubes The automatic Rackloader is used when raw material is coming in straight lengths. There are lengths for rackloaders for max. 4,000 mm (157”) and 6,000 mm (236”) tubes. The rackloader is closely integrated into the machine, thus keeping total system length as short as possible. The TCC-28 offers a remarkable advantage in cutting straight tubes: minimum waste pieces. The TCC-28 can change cutting length automatically: it can be programmed to cut e.g. 6,000 mm (236”) long straight tube so that the rest piece will be as short as possible. Practice has shown three cutting lengths to be enough for minimizing the length of rest pieces. It is natural that if the TCC-28 can cut different lengths, it should be made possible to sort the lengths automatically. Accordingly, the TCC-28 is normally equipped with an automatic sorting table. Thus, the three different cut lengths and waste pieces are sorted into boxes of their own. Different sorting tables are available for maximum cut lengths from 2,000 mm to 6,000 mm (79” –236”).
