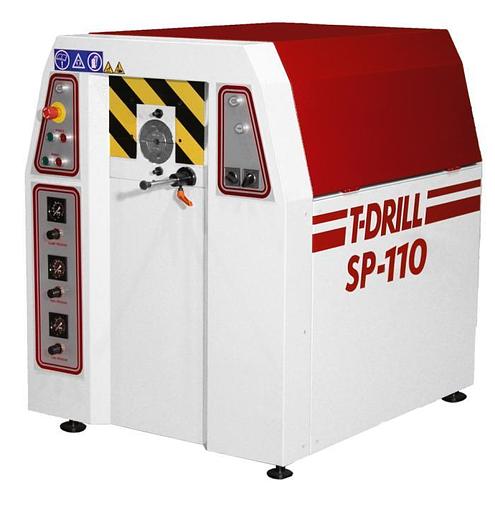

SP-110 Tube End Spinner
SP-110 Tube End Spinner
orCall 508-277-9598
Description
SP-110 Fully Automatic Tube End Spinner
T-DRILL tube end spinner is a solution for closing, reducing and expanding copper tubes. Maximum reduction is 70%. The SP-110 is suitable for diameter 8–108 mm (5/16” – 4-1/8” O.D.) tubes. Typical applications are different tubes for HVAC equipment. T-DRILL spinners are fully automatic.
Advantages of T-DRILL Tube End Spinners:
Economical: Reduced costs of fittings and brazing materials
Simple: No need for or inventory of costly fittings
Fast: Reduced Labor
Quality: Improved product integrity as leak points are eliminated
Specifications
| Manufacturer | T-DRILL |
| Condition | New |
| Main fuse | Max. 3 x 80 A |
| Motor | 18,5 kW |
| Air pressure | 6–8 bar |
| Air consumption | 850 Nl/min |
| Closing diameters | Ø8–108 mm | 5/16” – 4-1/8” O.D. *) |
| Reduction diameters | Ø8–108 mm | 5/16” – 4-1/8” O.D. *) |
| Expanding diameters | Ø8–67 mm | 5/16” – 2-5/8” O.D. *) |
| Max. wall thickness | 3 mm | 1/8” |
| Machine dimensions | 1500 x 925 x 1170 mm | 5ft x 3ft x 4ft (L x W x H) |
| Package dimensions | 1800 x 1100 x 1450 mm | 6ft x 4ft x 5ft (L x W x H) |
| Net weight | 550 kg | 1200 lbs |
| Gross weight | 770 kg | 1700 lbs |
| Pipe material | Copper |
| Machine type | Industrial machines |
| Process | End forming |
| Mains supply | 200-240 V / 50-60 Hz, 3-phase, 380-480 V / 50-60 Hz, 3-phase |
