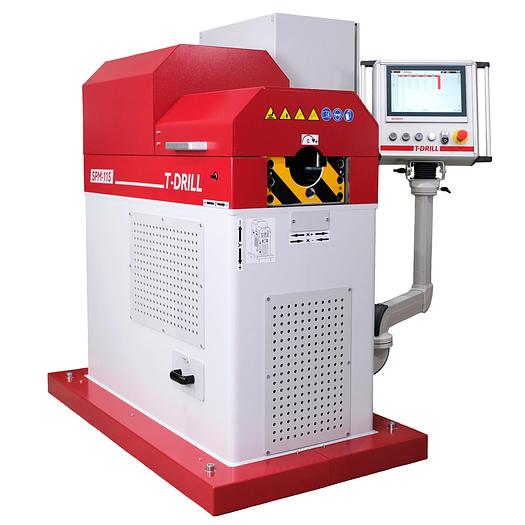

SPM-115 Tube End Spinner

Fully automatic servo-controlled Tube End Spinning Machine SPM-115 T-DRILL’s new Fully automatic servo-controlled Tube End Spinning Machine SPM-115 is designed for flat closing of copper and brass tubes. The machine has a fast cycle time, as the typical process time is only ~ 20–45 seconds depending on tube specification. Process: Tube is loaded, the clamps are closed, and tube is held stationary. Rotating tool is automatically fed against the tube end. The friction between the rotating tool and the tube heats the tube end and rapidly forms it. System offers rapid set-up and change-over: clamps are changed according to the tube size, the program is selected from the library and the machine makes the correct adjustments automatically. The user-friendly GUI with color touch panel guides the operator visually step by step. The operation is completely electric, without hydraulics and pneumatics. This results in energy efficient, low loss process with high repeatability. The SPM-115 is also very quiet with less than 75 dB noise level. Key Features Industry 4.0 ready Quiet and stable operation Fast machine set up and cycle time High repeatability due to servo controlled process Energy efficient, low cost operation Completely electric operation without hydraulics and pneumatics Storage for hundreds of programs User-friendly GUI with color touch panel Visual / Tutorial operator interface
