Description

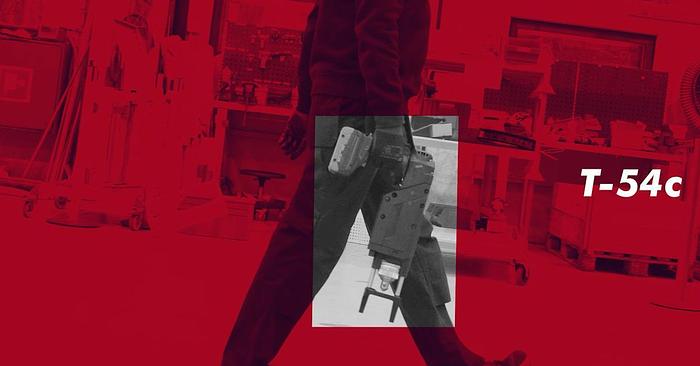

T-54c Cordless Portable Collaring Machine for Copper

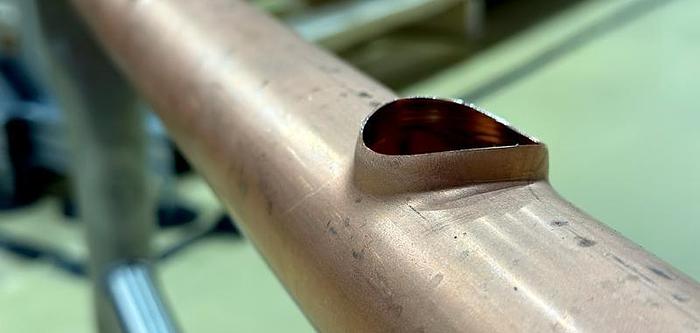

Introducing the battery-operated, portable collaring machine, T-DRILL T-54c, a powerful member of the T-DRILL tool family of copper tubes. Unleash the power of efficiency and profitability with this cordless collaring machine to redefine your workflow.
Capacity of up to 54 mm (NS 2″) out of run tubes up to 108 mm (NS 4″) (with optional retrofit kit even up to 168.3 mm run tubes)
Battery-operated for unparalleled portability
Ideal for plumbing, HVACR, and special applications
Compared to the installed cost of a tee fitting, the T-DRILL joint can improve your profit by up to 70%
Benefits:
Cut Costs: Achieve up to 70% higher profit compared to traditional tee fittings
Quality Assurance: Minimize leaks and call-backs with a single brazed joint
Flexibility: Enjoy TEE ratio variation flexibility without the need for costly T-fitting inventories
CUT COSTS – IMPROVE QUALITY – INCREASE PROFIT

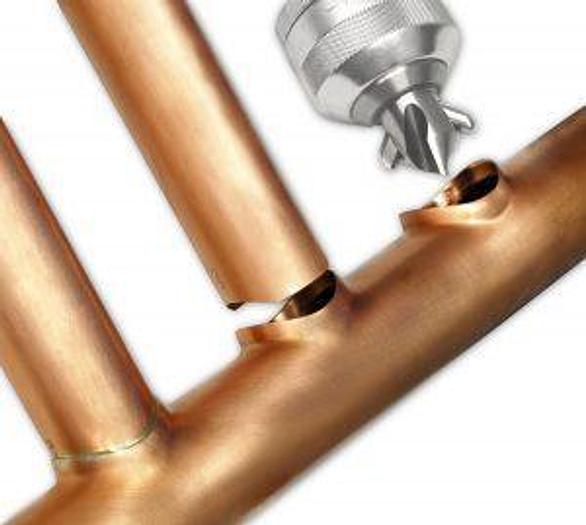

Only one brazed joint
No pipe cutting
No T-fittings
TEE ratio variation flexibility
Less chance for leaks or call-backs
Minimized inspection cost
Improved flow characteristics
No costly T-fitting inventories
COMPARISON: Welded Fittings vs T-DRILL Collaring & Flanging
Specifications
Manufacturer | T-DRILL |
Condition | New |
Run tube diameter | 15–108 (163,8 mm) | NS ½” – 4” (6″) |
Max. wall thickness | See capacity chart | K, L, M tubing |
Material | Copper |
Weight of the unit | 5,22 kg | 11,51 lbs |
Collar sizes | 8–54 mm | NS ½” – 2” |
Run tube sizes | 15–108 (163,8 mm) | NS ½” – 4” (6″) |
Pipe material | Copper, Copper / Nickel |
Work cycle time | 15–60 sec |
Machine type | Portable tools |
Process | Collaring |
Tee diameter | 8–54 mm | NS ½” – 2” |
