T-65B Cordless Collaring Machine
T-65B Cordless Collaring Machine
orCall 508-277-9598
Description

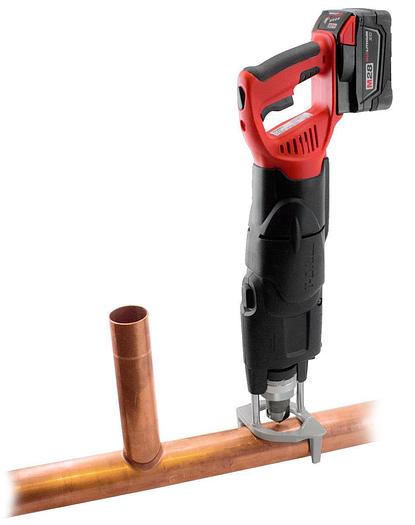

T-65B Cordless Heavy Duty Collaring Machine for Copper
The Heavy Duty T-DRILL T-65B is an easy-to-use, low-noise cordless 28V Lithium-Ion TEE forming machine for professionals. It is an ideal solution for making reducing tee joints in main run tubes. It will give you a competitive advantage by eliminating costs caused by commercial T-fittings.
CUT COSTS – IMPROVE QUALITY – INCREASE PROFIT
Only one brazed joint
No pipe cutting
No T-fittings
TEE ratio variation flexibility
Less chance for leaks or call-backs
Minimized inspection cost
Improved flow characteristics
No costly T-fitting inventories
More about the T-DRILL certification test
COMPARE YOURSELF
Click to download the selected Excel chart below and use your own figures to replace the red ones. The costs by each method will be calculated automatically.
Cost Comparison between Capillary Fittings and T-DRILL Method
Cost Comparison between Press Fittings and T-DRILL Method
Watch the T-65 training video:
Specifications
Manufacturer | T-DRILL |
Condition | New |
Run tube diameter | 15–108 (163,8 mm) | NS ½” – 4” (6″) |
Max. wall thickness | See capacity chart | K, L, M tubing |
Material | Copper |
Cycle time | 15–60 sec |
Spindle rotation speed | 0–500/50 rpm |
Noice level | 82,5 dB (A) |
Vibration | less than 2,5 m/s2 |
Dimensions of the unit | 22.4'' x 4.9'' x 7.0'' (L x D x H) |
Weight of the unit | 5,4 kg | 12 lbs |
Supply voltage | 230V / 50Hz 120V / 60 Hz 110V / 50 Hz |
Collar sizes | 8–54 mm | NS ½” – 2” |
Run tube sizes | 15–108 (163,8 mm) | NS ½” – 4” (6″) |
Pipe material | Copper, Copper / Nickel |
Work cycle time | 15–60 sec |
Machine type | Portable tools |
Process | Collaring |
Tee diameter | 8–54 mm | NS ½” – 2” |
