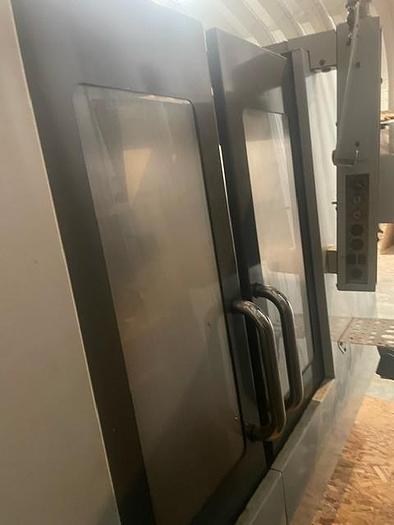

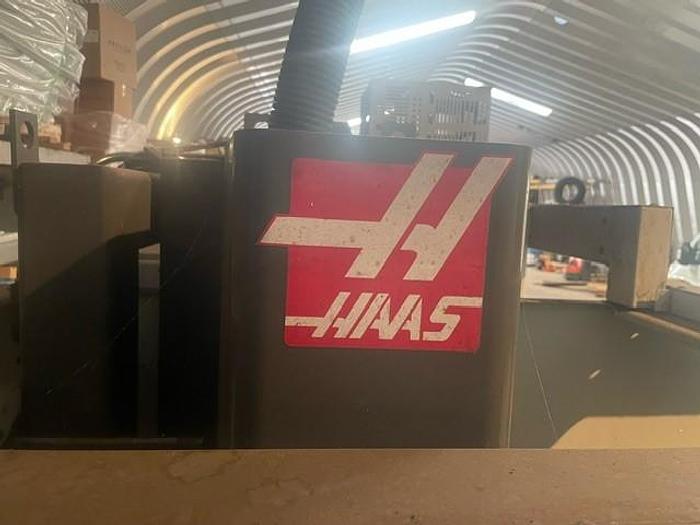

2015 Haas TM-1P

Specifications:

Travels S.A.E METRIC

X Axis 30.00 in 762 mm

Y Axis 16.00 in 406 mm

Z Axis 16.00 in 406 mm

Spindle Nose to Table (~ max) 20.0 in 508 mm

Spindle Nose to Table (~ min) 4.0 in 102 mm

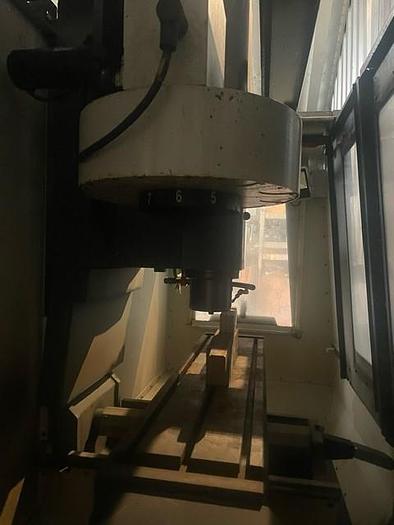

Spindle S.A.E METRIC

Max Rating 7.5 hp 5.6 kW

Max Speed 6000 rpm 6000 rpm

Max Torque 33.0 ft-lbf @ 1200 rpm 45.0 Nm @ 1200 rpm

Drive System Direct Speed, Belt Drive Direct Speed, Belt Drive

Taper CT or BT 40 CT or BT 40

Bearing Lubrication Grease Packed Grease Packed

Cooling Air Cooled Air Cooled

This machine needs a new spindle.

Table S.A.E METRIC

Length 47.8 in 1213 mm

Width 10.5 in 267 mm

T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm

T-Slot Center Distance 4.00 in 102 mm

Number of Std T-Slots 3 3

Max Weight on Table 350 lb 159 kg

(evenly distributed)

Feedrates S.A.E METRIC

Max Cutting 400 ipm 10.2 m/min

Rapids on X 400 ipm 10.2 m/min

Rapids on Y 400 ipm 10.2 m/min

Rapids on Z 400 ipm 10.2 m/min

Axis Motors S.A.E METRIC

Max Thrust X 2000 lbf 8896 N

Max Thrust Y 2000 lbf 8896 N

Max Thrust Z 2000 lbf 8896 N

Tool Changer S.A.E METRIC

Type Carousel Carousel

Capacity 10 10

Max Tool Diameter (full) 3.5 in 89 mm

Max Tool Weight 12.0 lb 5.4 kg

Tool-to-Tool (avg) 5.70 s 5.70 s

Chip-to-Chip (avg) 6.50 s 6.50 s

Air Requirements S.A.E METRIC

Air Required 4 scfm @ 100 psi 113 L/min @ 6.9 barInline

Air Hose 3/8 in 9.525 mm

Coupler (Air) 3/8 in 9.525 mm

Air Pressure Min 80 psi 5.5 bar

Dimensions - Shipping S.A.E METRIC

Domestic Pallet 112 in x 80 in x 100 in 284 cm x 203 cm x 254 cm

Export Pallet 112 in x 80 in x 100 in 284 cm x 203 cm x 254 cm

Weight 4440 lb 2014.0 kg

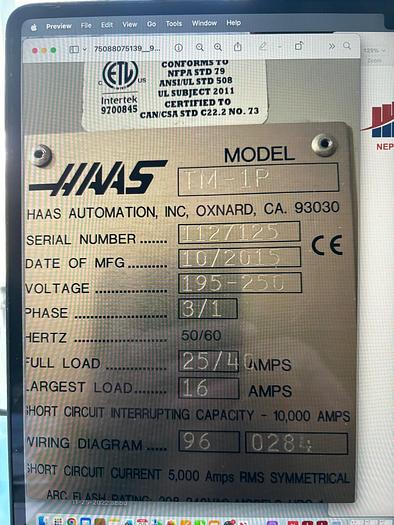

Electrical Specification S.A.E METRIC

Spindle Speed 6000 rpm 6000 rpm

Drive System Direct Speed, Belt Drive Direct Speed, Belt Drive

Spindle Power 7.5 hp 5.6 kW

Input AC Voltage (1 Phase) 220 VAC 220 VAC

Full Load Amps (1 Phase) 40 A 40 A

Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC

Full Load Amps (3 Phase) - Low 25 A 25 A

Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC

Full Load Amps (3 Phase) - High* 13 A 13 A
